Vertical Mounting Current Transformer (TL76 Series)

Vertical Mounting Current Transformer (TL76 Series)

[

 [][] Features:

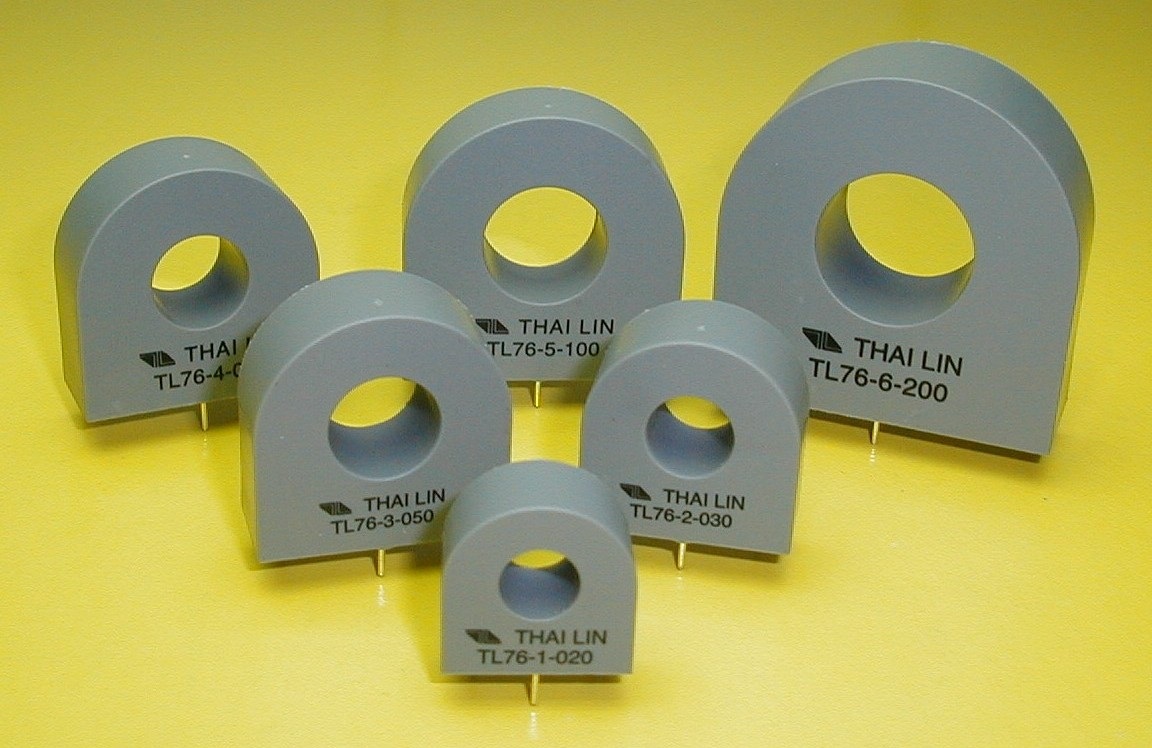

  • Six different case sizes
  • Epoxy encapsulated
  • Frequency: 50/60Hz
  • Insulation resistance: 100M Ohm @ 500Vdc
  • Dielectric strength: 4000Vrms
  • Ideal for metering, overload current sensing and ground fault detection

[
Product Series Part Number Input Current (A, nominal) Input Current (A, max.) Current Ratio
TL76-1
 TL76-1-005 5 45 5A / 5mA
TL76-1-010 10 10A / 10mA
TL76-1-015 15 15A / 15mA
TL76-1-020 20 20A / 20mA
TL76-2 TL76-2-025 25 75 25A / 25mA
TL76-2-030 30 30A / 30mA
TL76-3 TL76-3-040 40 125 40A / 40mA
TL76-3-050 50 50A / 50mA
TL76-4 TL76-4-060 60 200 60A / 60mA
TL76-4-075 75 75A / 75mA
TL76-5 TL76-5-100 100 250 100A / 100mA
TL76-6 TL76-6-150 150 500 150A / 150mA
TL76-6-200 200 200A / 200mA
