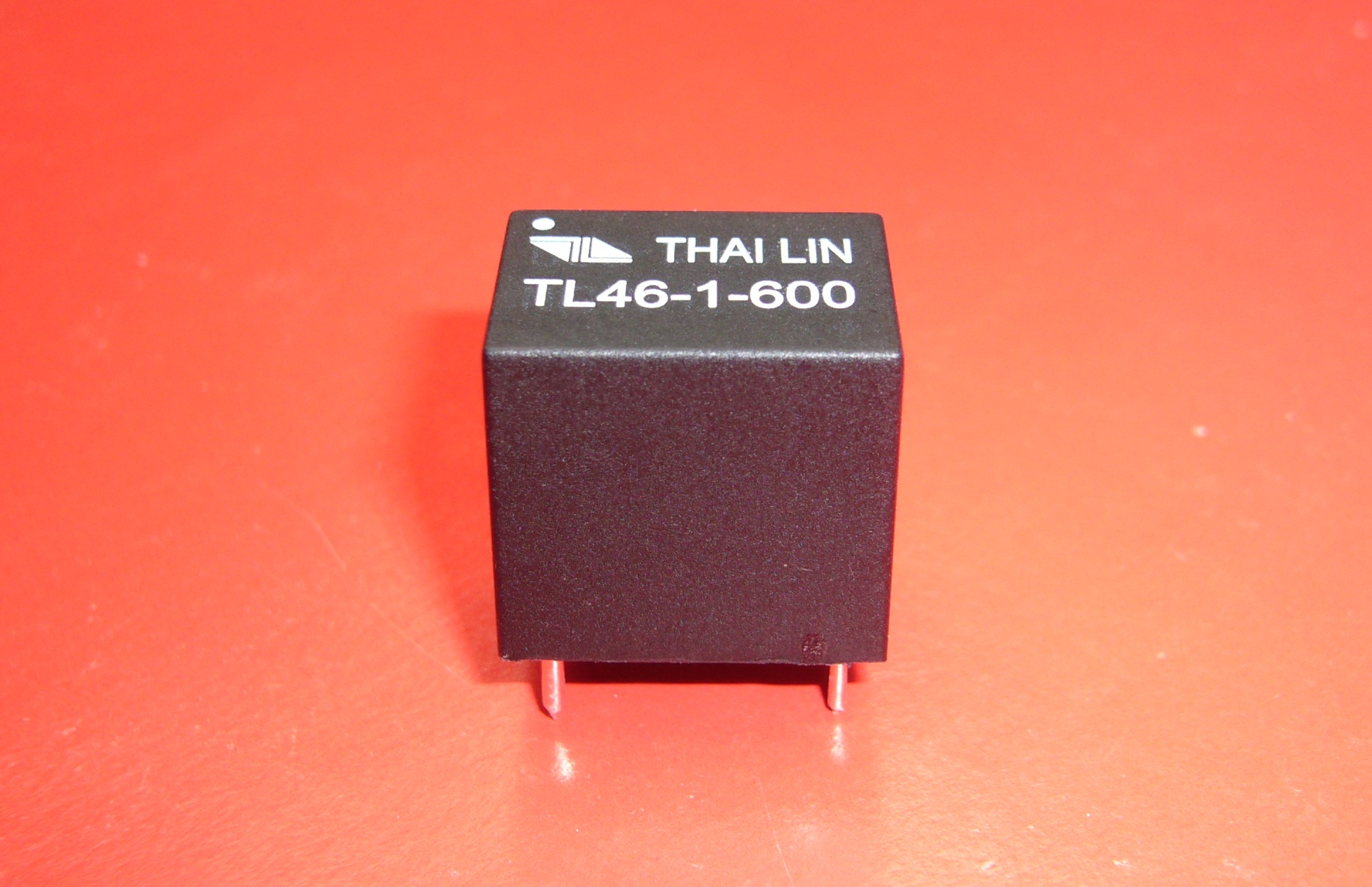

Current Sense Transformer (TL46 Series) [ |
[][] | Features:
[
|
|
| [ |
| Part Number | Turn Ratio Pri : Sec | Secondary Current (mA, max.) | Secondary Inductance (mH, ref.) | Secondary DC Resistance (ohm, max.) |
|
TL46-1-050 TL46-1-100 TL46-1-150 TL46-1-200 |
1 : 50 1 : 100 1 : 150 1 : 200 |
400
200 134 100 |
8
31 70 124 |
0.7 1.4 2.4 3.5 |
|
TL46-1-300 TL46-1-500 TL46-1-600 TL46-1-750 |
1 : 300
1 : 500 1 : 600 1 : 750 |
67
40 34 27 |
278
773 1000 1738 |
6.5 12.5 15 60 |
