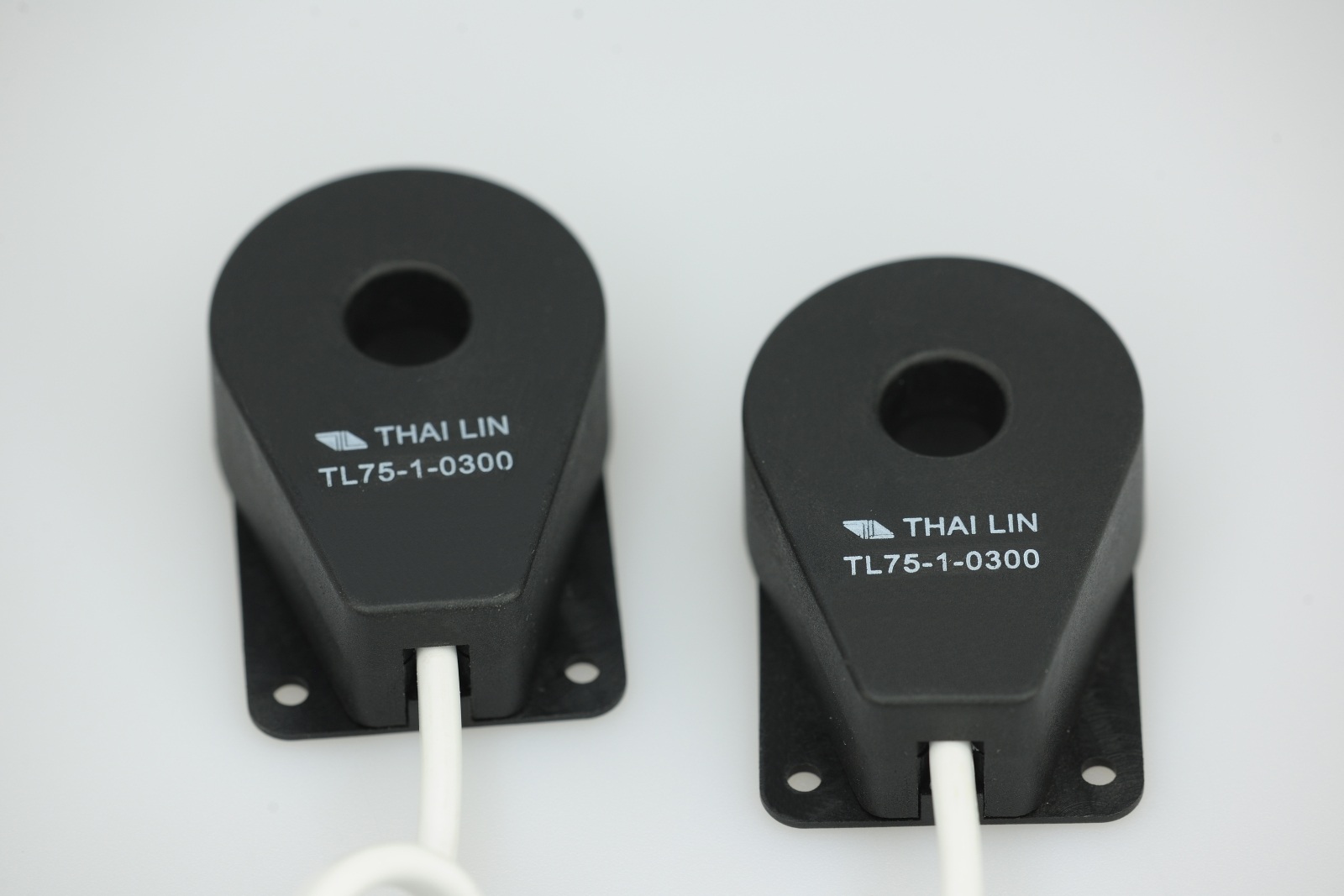

Current Transformer with Power Cord (TL75 Series)

Current Transformer with Power Cord (TL75 Series)

[

 [][] Features:

  • Encased in plastic housing with mounting ears
  • Terminated with H03VVH2-F power cord
  • Frequency range: 50 ~ 400Hz
  • Dielectric strength: 2500Vrms
  • Ideal for current measurement and detection

]

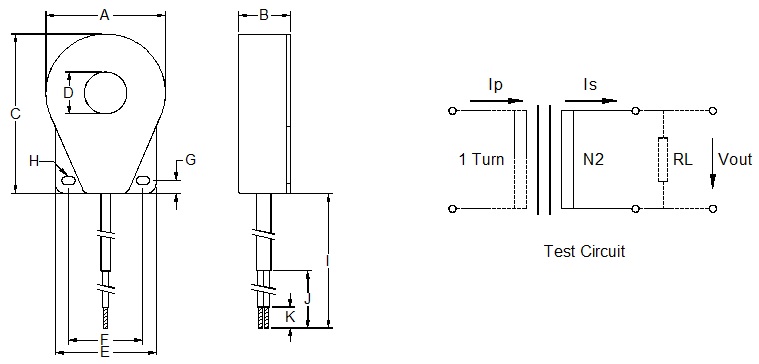

Product Series Dimension (mm) Weight   (g)
A B C D E F G H I J K
TL75-1 37.0 18.5 53.0 DIA11.0 34.5 26.0 5.0 DIA3.0 750.0 30.0 8.0 80
TL75-2 46.0 20.5 62.0 DIA16.0 38.5 28.0 5.0 DIA3.0 x 5.0 750.0 30.0 8.0 145
Tolerance max. max. max. ± 0.5 max. ± 0.5 ± 0.5 ± 0.5 ± 20.0 typ. typ. approx.



Product Series Part Number Turn Ratio        Input Current          (A, max.)        Output Voltage          (V, max.)
TL75-1 TL75-1-0300

TL75-1-0500

TL75-1-1000

TL75-1-2000

TL75-1-3000

 1 : 300

1 : 500

1 : 1000

1 : 2000

1 : 3000

 90 4.5

8.0

16

32

48
TL75-2 TL75-2-0300

TL75-2-0500

TL75-2-1000

TL75-2-2000

TL75-2-3000

 1 : 300

1 : 500

1 : 1000

1 : 2000

1 : 3000

 270 2.7

5.4

8.91

13.5

27

Note: The output voltage can be varied by adjusting the loading resistance RL.
