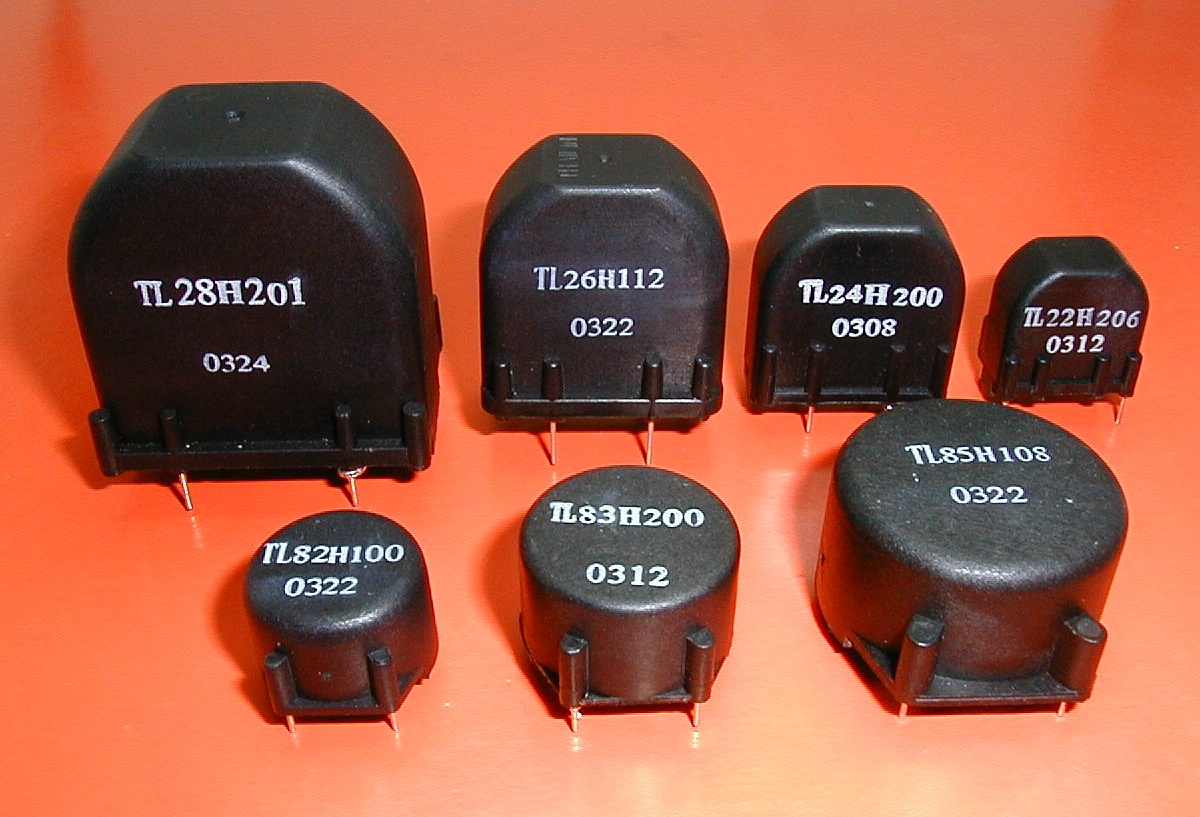

Encapsulated Choke (TL2x, TL8x Series) [ |
Features:
|
||
| Part Number | Current (A) | Inductance (uH) | DCR (ohm) | Part Number | Current (A) | Inductance (uH) | DCR (ohm) |
| *TL22H100
*TL23H101 *TL24H102 |
1
1 1 |
125
400 2500 |
0.150
0.210 0.700 |
TL82H100
TL83H101 TL84H102 |
1
1 1 |
125
400 2500 |
0.150
0.210 0.700 |
| *TL22H103
*TL23H104 *TL24H105 |
1.6
1.6 1.6 |
50
400 1000 |
0.070
0.180 0.290 |
TL82H103
TL83H104 TL84H105 |
1.6
1.6 1.6 |
50
400 1000 |
0.070
0.180 0.290 |
| *TL23H106
*TL24H107 *TL26H108 *TL27H109 *TL28H110 |
2.5
2.5 2.5 2.5 2.5 |
160
400 1000 1600 2500 |
0.073
0.140 0.225 0.307 0.350 |
TL83H106
TL84H107 TL85H108 TL86H109 TL87H110 |
2.5
2.5 2.5 2.5 2.5 |
160
400 1000 1600 2500 |
0.073
0.140 0.225 0.307 0.350 |
| *TL25H111
*TL26H112 *TL27H113 *TL29H114 |
3.15
3.15 3.15 3.15 |
250
630 1000 4000 |
0.083
0.148 0.170 0.365 |
TL84H111
TL85H112 TL86H113 TL88H114 |
3.15
3.15 3.15 3.15 |
250
630 1000 4000 |
0.083
0.148 0.170 0.365 |
| *TL25H115
*TL26H116 *TL27H117 *TL28H118 *TL29H119 |
4
4 4 4 4 |
160
400 630 1000 2500 |
0.059
0.103 0.110 0.142 0.235 |
TL84H115
TL85H116 TL86H117 TL87H118 TL88H119 |
4
4 4 4 4 |
160
400 630 1000 2500 |
0.059
0.103 0.110 0.142 0.235 |
| *TL25H120
*TL26H121 *TL27H122 *TL29H123 |
5
5 5 5 |
100
250 400 1600 |
0.035
0.058 0.080 0.150 |
TL84H120
TL85H121 TL86H122 TL88H123 |
5
5 5 5 |
100
250 400 1600 |
0.035
0.058 0.080 0.150 |
| *TL25H124
*TL26H125 *TL29H126 |
6.3
6.3 6.3 |
63
160 1000 |
0.025
0.035 0.095 |
TL84H124
TL85H125 TL88H126 |
6.3
6.3 6.3 |
63
160 1000 |
0.025
0.035 0.095 |
| *TL27H127
*TL28H128 *TL29H129 |
8
8 8 |
125
250 630 |
0.025
0.042 0.060 |
TL86H127
TL87H128 TL88H129 |
8
8 8 |
125
250 630 |
0.025
0.042 0.060 |
| *TL26H130
*TL27H131 *TL28H132 *TL29H133 |
10
10 10 10 |
63
100 160 400 |
0.018
0.018 0.027 0.035 |
TL85H130
TL86H131 TL87H132 TL88H133 |
10
10 10 10 |
63
100 160 400 |
0.018
0.018 0.027 0.035 |
