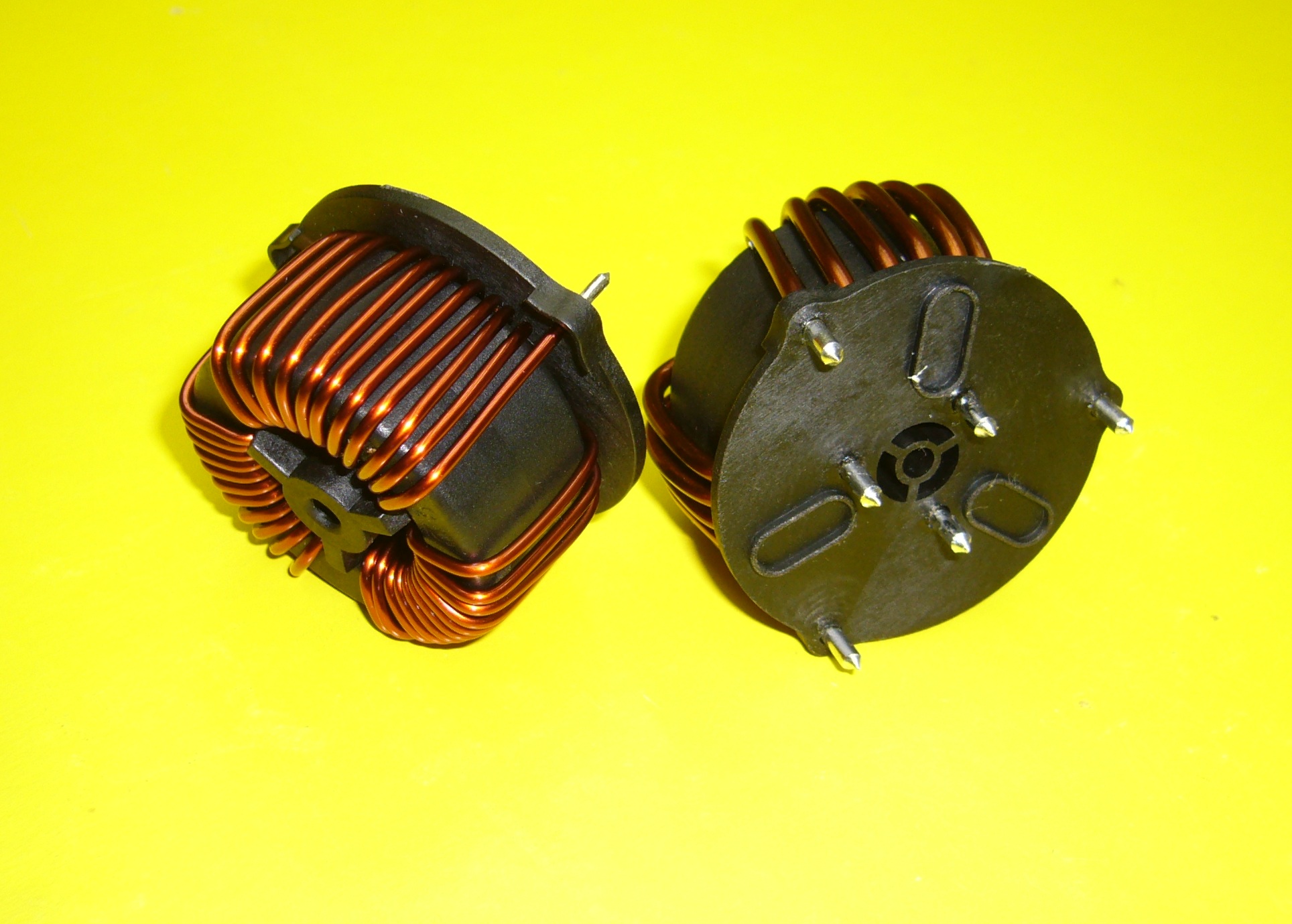

3-Phase Common Mode with Nanocrystalline Cores (TL40 Series)

3 Phase Common Mode with Nanocrystalline Cores (TL40 Series)

Features:

  • Inductance range : 1mH min. ~ 7.2mH min.
  • Current range : 6 ~ 30A
  • Dielectric strength: 2500Vrms
  • Easy assembly
  • Compact design

[

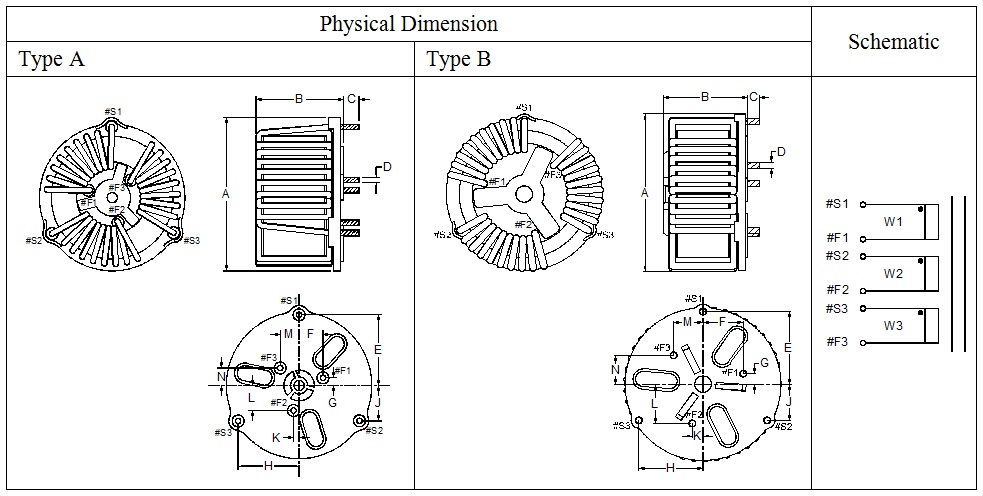

Product Series Dimension (mm)
A B C D E F G H J K L M N
Type A 48.0 30.0 4.5 see note 20.7 7.0 2.3 18.0 10.4 1.6 7.4 5.6 5.0
Type B 67.0 36.0 4.5 28.5 15.45 4.14 24.68 14.25 4.14 15.45 11.31 11.31
Tolerance (mm) max. max. ±1.0 ±0.1 ref. ref. ref. ref. ref. ref. ref. ref. ref.

Note : Dimension “D” refers to “Winding Diameter” in the following table.

Part Number Inductance (mH, min.) Rated  Current (Arms) DC Resistance (mW, max.) Number of Windings Winding Diameter (mm) Type Approx. Weight  (g)
TL40-060-001
TL40-080-001
TL40-120-001
TL40-150-001
7.2
5.6
4.2
3.3
6
8
12
15
43.5
27
19.5
15.5
3
3
3
3
DIA1.0
DIA1.2
DIA1.3
DIA1.4
A 70
74
73
75
TL40-180-001
TL40-200-001
TL40-250-001
TL40-300-001
2.2
1.8
1.3
0.8
18
20
25
30
9.5
8.5
7.5
5
3
3
3
3
DIA1.6
DIA1.8
DIA2.0
DIA2.3
A 78
82
84
90
TL40-220-001
TL40-270-001
TL40-320-001
TL40-360-001
6.4
4.9
3.6
2.5
22
27
32
36
16
10.8
7.2
5
3
3
3
3
DIA1.8
DIA2.0
DIA2.3
DIA2.5
B 199
202
205
208

Note : Inductance is measured at 10kHz / 0.3V.
