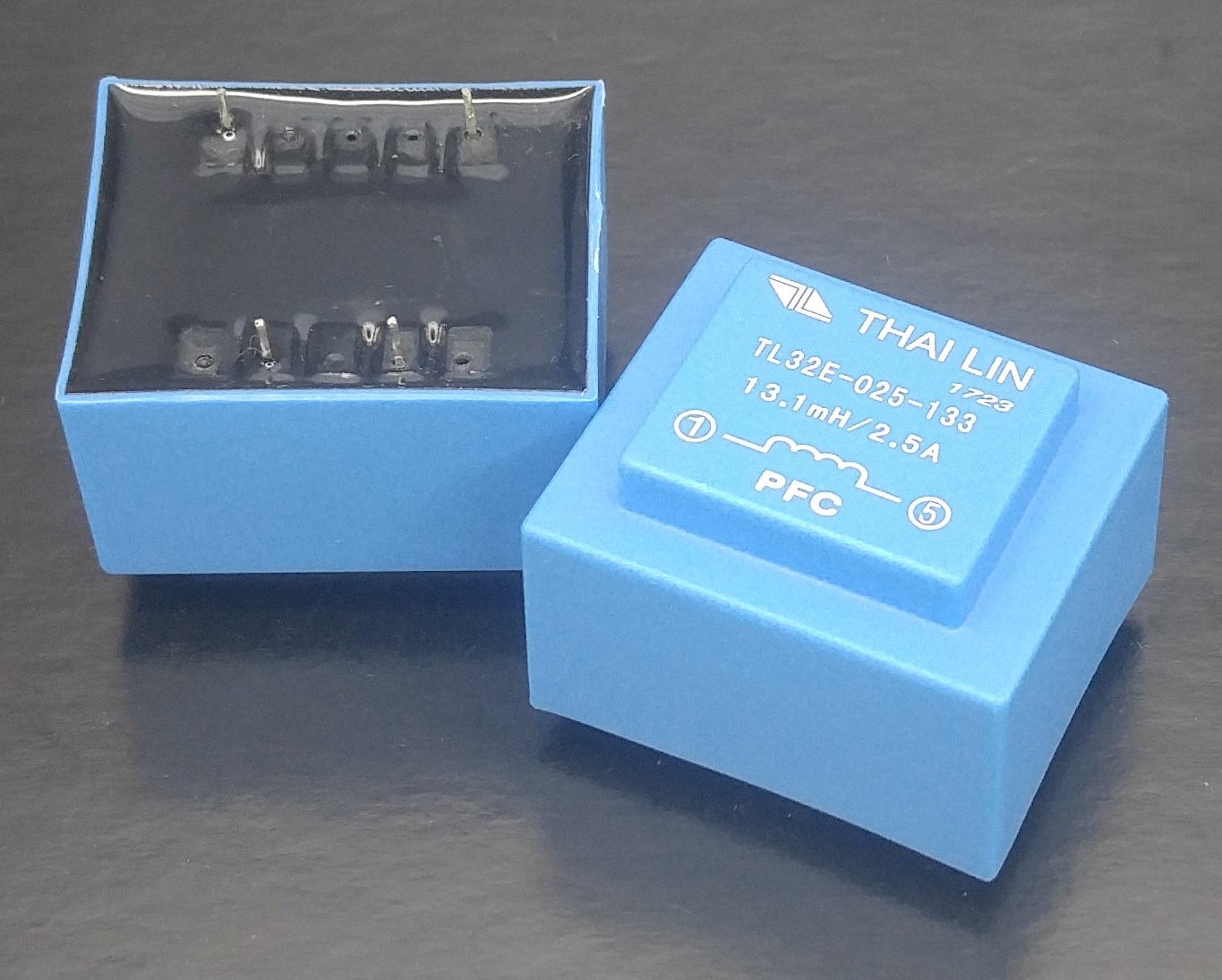

Passive Power Factor Correction (PFC) Choke (TL32 Series)

Passive Power Factor Correction (PFC) Choke (TL32 Series)

Features:

  • Rated voltage: 250V
  • Frequency – 50/60 Hz
  • Inductance tolerance: ±20%
  • Insulation material class B (130°C)
  • Ambient temperature (ta) – 40°C
  • Potted under vacuum
  • Climatic classification: 25/085/21-C ACC. to IEC60068-1
  • Custom-made PFC choke are available upon request

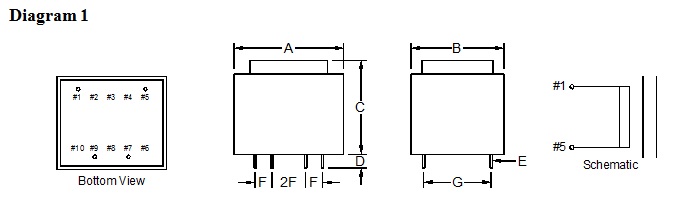

Product Series Dimension (mm) Weight (g)
A B C D E F G
TL32A 32.3 27.3 22.8 4.0 SQ0.64 5.0 20.0 80
TL32B 32.3 27.3 27.8 4.0 SQ0.64 5.0 20.0 100
TL32C 32.3 27.3 29.8 4.0 SQ0.64 5.0 20.0 115
TL32D 32.3 27.3 34.3 4.0 SQ0.64 5.0 20.0 135
TL32E 41.0 35.0 28.0 4.0 SQ0.64 5.0 25.0 145
TL32F 41.0 35.0 30.8 4.0 SQ0.64 5.0 25.0 170
Tolerance ±0.5 ±0.5 ±0.5 ±1.0 ±0.1 ±0.2 ±0.5 approx.

Note: Pins #2, #3, #4, #6, #8, #10 are omitted for standard parts.

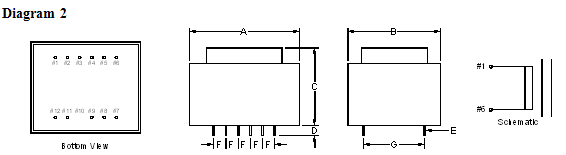

Product Series Dimension (mm) Weight (g)
A B C D E F G
TL32G 44.0 37.0 31.5 4.0 SQ0.64 5.0 25.0 190
TL32H 44.0 37.0 38.2 4.0 SQ0.64 5.0 25.0 240
TL32J 51.0 43.0 34.5 4.0 SQ0.64 5.0 27.5 290
TL32K 51.0 43.0 38.5 4.0 SQ0.64 5.0 27.5 330
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±0.1 ±0.2 ±0.5 approx.

Note: Pin #10 is omitted for standard parts.



Product Series Dimension (mm) Weight (g)
A B C D E F G H I J K
TL32L 57.5 48.5 42.8 82.5 11.0 10.5 68.0 6.7 3.5 6.3 0.8 440
TL32M 63.5 53.5 45.5 88.0 13.5 11.5 75.0 9.0 5.0 6.3 0.8 610
TL32P 71.8 58.5 48.8 94.0 13.0 12.7 82.0 8.3 5.0 6.3 0.8 810
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 typ. ±1.0 ±0.5 ±0.2 ±0.2 ±0.1 approx.



Product Series Dimension (mm) Weight (g)
A B C D E F G H I J K
TL32R 71.8 58.5 61.5 94.0 13.0 37.5 82.0 8.3 5.0 6.3 0.8 1120
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±0.5 ±0.2 ±0.2 ±0.1 approx.

Product Series Dimension (mm) Weight (g)
A B C D E F G H I J K
TL32T 85.0 68.2 64.0 112.5 8.6 23.9 97.5 10.0 5.2 4.8 0.8 1520
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±0.5 ±0.2 ±0.2 ±0.1 approx.

Part Number Inductance (mH) (@25°C 50Hz) Rated Current (A) Part Number Inductance (mH) (@25°C 50Hz) Rated Current (A)

TL32A-005-473

TL32A-010-123

TL32A-015-682

TL32A-020-332

TL32A-025-152

47.0

12.0

6.8

3.3

1.5

0.5

1.0

1.5

2.0

2.5

TL32J-020-453

TL32J-025-233

TL32J-030-183

TL32J-040-972

TL32J-050-542

45.2

23.0

18.3

9.7

5.4

2.0

2.5

3.0

4.0

5.0

TL32B-005-563

TL32B-010-153

TL32B-015-822

TL32B-020-392

TL32B-025-182

56.0

15.0

8.2

3.9

1.8

0.5

1.0

1.5

2.0

2.5

TL32K-020-543

TL32K-025-273

TL32K-030-213

TL32K-040-113

TL32K-050-642

54.2

27.20

21.8

11.56

6.44

2.0

2.5

3.0

4.0

5.0

TL32C-005-683

TL32C-010-183

TL32C-015-103

TL32C-020-472

TL32C-025-222

68.0

18.0

10.0

4.7

2.2

0.5

1.0

1.5

2.0

2.5

TL32L-025-413

TL32L-030-253

TL32L-040-143

TL32L-050-832

TL32L-060-632

41.3

24.9

14.0

8.3

6.33

2.5

3.0

4.0

5.0

6.0

TL32D-005-823

TL32D-010-223

TL32D-015-123

TL32D-020-562

TL32D-025-272

82.0

22.0

12.0

5.6

2.7

0.5

1.0

1.5

2.0

2.5

TL32M-030-323

TL32M-040-223

TL32M-050-143

TL32M-060-812

TL32M-070-632

32.5

22.0

14.3

8.19

6.32

3.0

4.0

5.0

6.0

7.0

TL32E-010-753

TL32E-015-343

TL32E-020-193

TL32E-025-133

TL32E-030-812

75.0

34.6

19.1

13.1

8.1

1.0

1.5

2.0

2.5

3.0

TL32P-040-183

TL32P-050-143

TL32P-060-882

TL32P-070-752

TL32P-080-452

18.0

14.0

8.85

7.5

4.56

4.0

5.0

6.0

7.0

8.0

TL32F-010-863

TL32F-015-403

TL32F-020-223

TL32F-025-153

TL32F-030-922

86.6

40.8

22.3

15.3

9.2

1.0

1.5

2.0

2.5

3.0

TL32R-050-203

TL32R-060-123

TL32R-070-103

TL32R-080-642

TL32R-090-532

20.0

12.3

10.45

6.45

5.3

5.0

6.0

7.0

8.0

9.0

TL32G-015-503

TL32G-020-323

TL32G-025-163

TL32G-030-133

TL32G-040-542

50.0

32.7

16.6

13.4

5.42

1.5

2.0

2.5

3.0

4.0

TL32T-060-213

TL32T-070-183

TL32T-080-123

TL32T-090-103

TL32T-100-622

21.8

18.4

12.0

10.3

6.23

6.0

7.0

8.0

9.0

10.0

TL32H-015-623

TL32H-020-413

TL32H-025-213

TL32H-030-173

TL32H-040-712

62.7

41.0

21.2

17.0

7.1

1.5

2.0

2.5

3.0

4.0

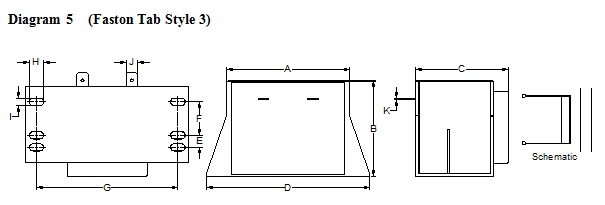

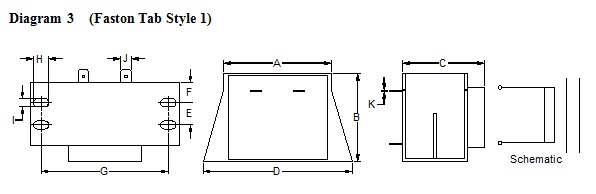

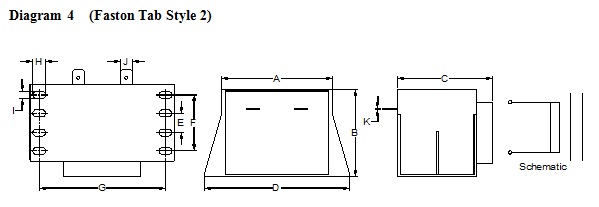

Note : For the products in Diagram 3, 4 & 5, three terminals types can be selected:

  • Faston Tab style                          (No suffix in P/N)
  • Flying Lead style                         (Add suffix “A” in P/N; e.g. TL32L-050-832A)
  • Pin type with fixing rails               (Add suffix “R” in P/N; e.g. TL32L-050-832R)
