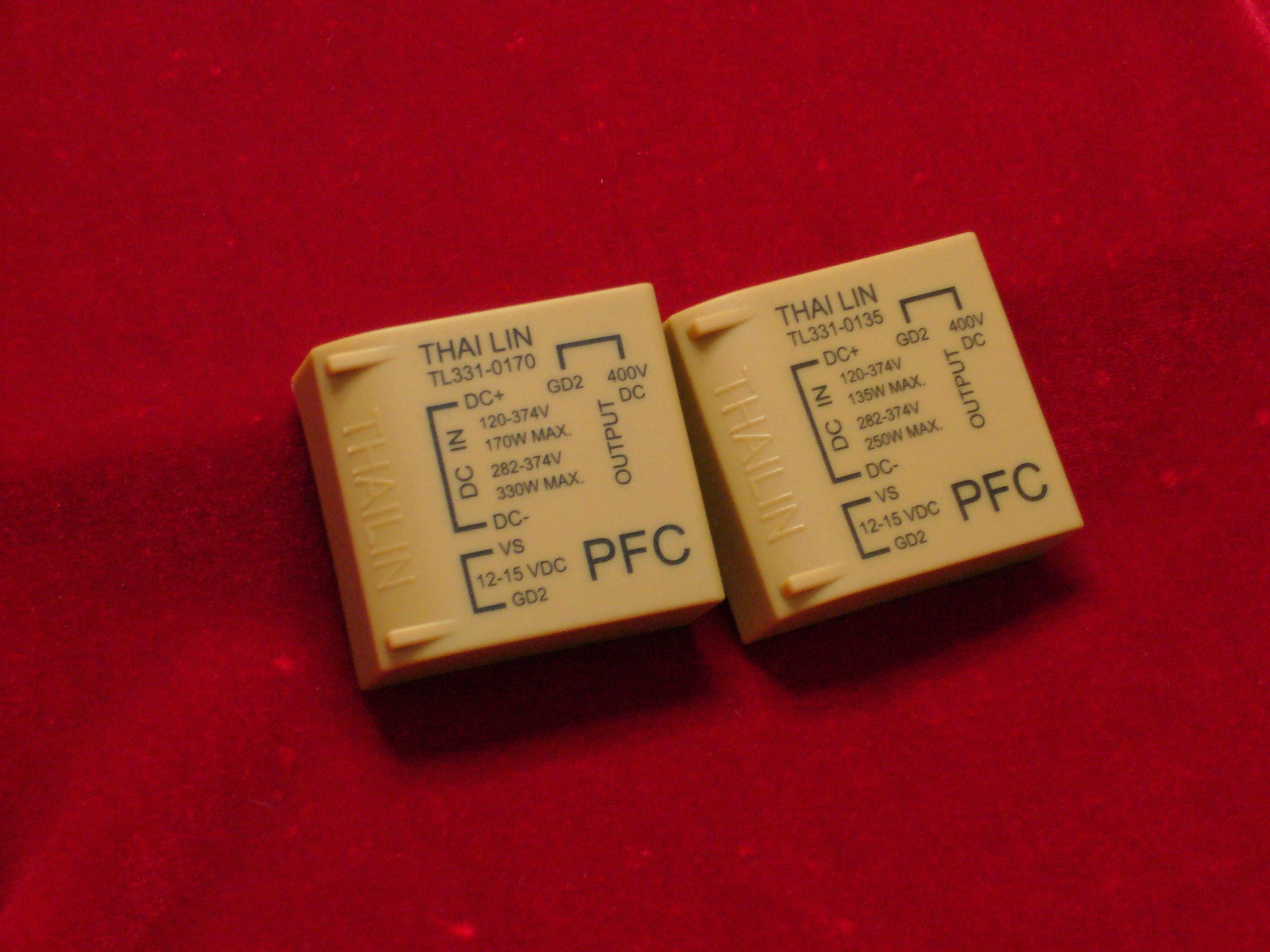

Power Factor Correction Control Module (TL331 Series)

[]

[]

[]

 [][] Features:

  • Universal rectified DC input 120 ~ 375V (AC input 85 ~ 265V)
  • Standby power consumption < 0.5W typ.
  • High efficiency and power factor
  • Protection: overload / over voltage / over temperature
  • Low output ripple and noise
  • Reduction of harmonics distortion in consumer goods
  • High thermal stability due to complete potting
  • Wide operating temperature range (- 40°C to 125°C)
  • All flammable material are rated 94V-0
  • RoHS compliant
  • Custom- Specific versions are available on request

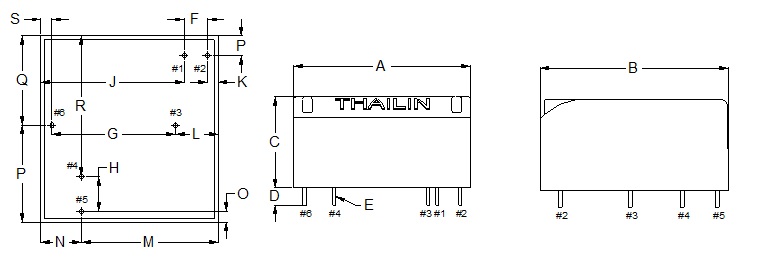

Product Series Dimension (mm) Weight (g)
A B C D E F G H J K L M N O P Q R S
TL331-0135 41.5 44.0 17.5 4.0 DIA1.0 5.3 28.3 8.0 32.8 2.5 9.7 31.3 9.3 2.5 22.4 20.6 32.5 2.6 67
TL331-0170 41.5 44.0 22.5 4.0 DIA1.0 5.3 28.3 8.0 32.8 2.5 9.7 31.3 9.3 2.5 22.4 20.6 32.5 2.6 86
Tolerance (mm) max. max. max. ±1.0 ±0.1 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 approx.

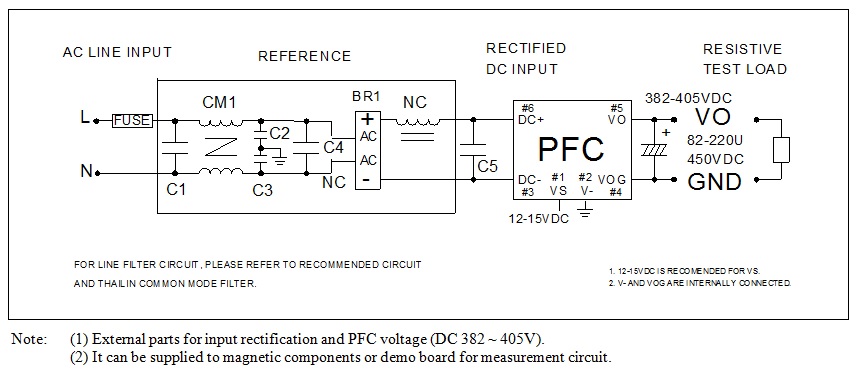

RECOMMENDED CIRCUIT CONFIGURATION

Note: (1) External parts for input rectification and PFC voltage (DC 382 ~ 405V).

         (2) It can be supplied to magnetic components or demo board for measurement circuit.

Part Number Rated Input Voltage Output Voltage (VDC) Max. Output Power (W) Fully Load THD (%) Typ.
Efficiency (%) Power Factor (η)
TL331-0135 120 ~ 375VDC   (85 ~ 265VAC) 400 135 98 0.99 12
280 ~ 375VDC (200 ~ 265VAC) 400 240 98 0.99 12
120 ~ 183VDC   (85 ~ 130VAC) 400 135 96 0.99 7
TL331-0170 120 ~ 375VDC   (85 ~ 265VAC) 400 170 98 0.99 12
260 ~ 375VDC (185 ~ 265VAC) 400 330 98 0.99 12
120 ~ 183VDC   (85 ~ 130VAC) 400 170 96 0.99 7
