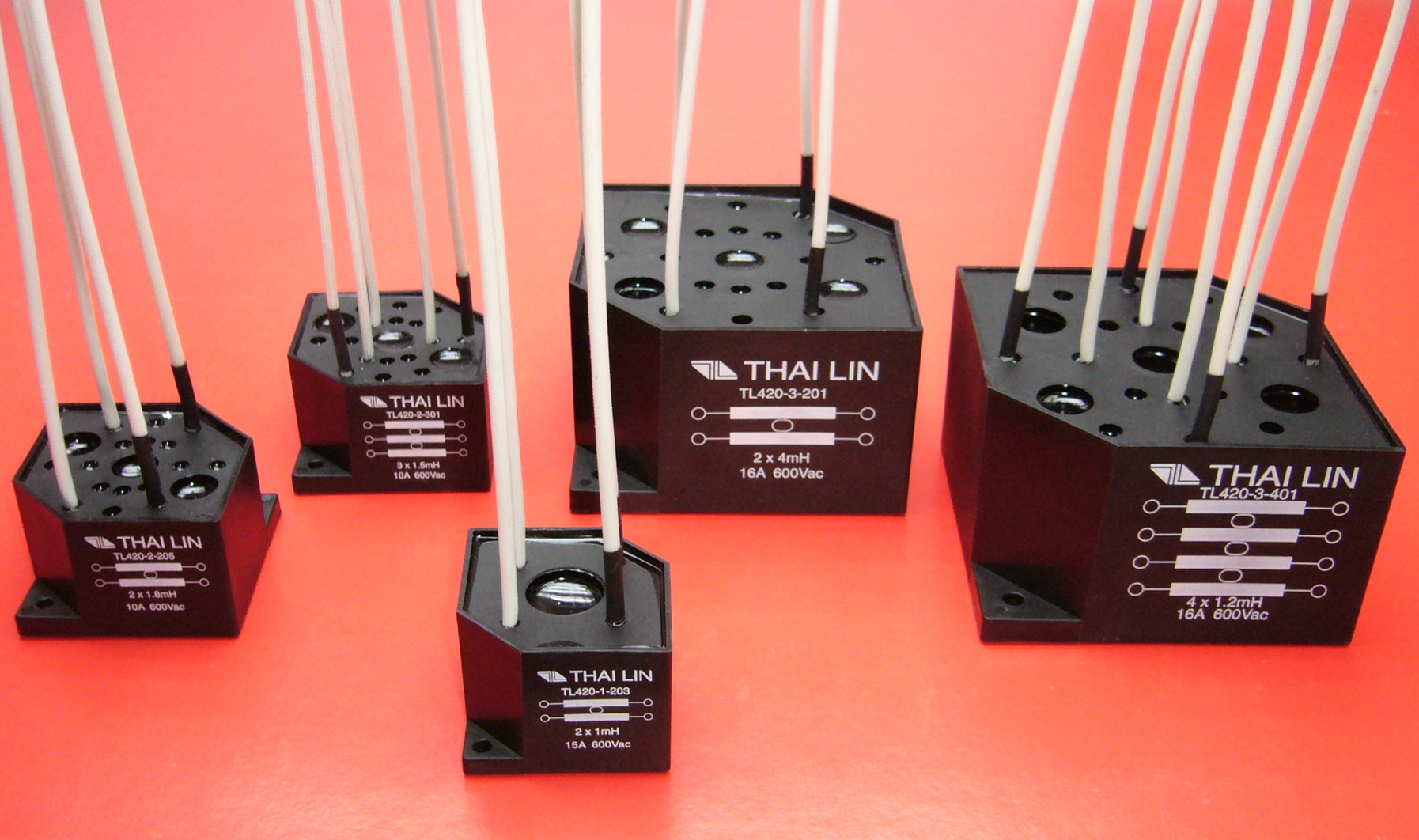

Magnetically Compensated Choke (TL420 Series) [ |
[][] | Features:
[ |
|
| [ |
| Part Number | Inductance (mH, ±30%) | Rated Current (Arms) | Nominal DCR (m ohm) | Typical Resonant Frequency (kHz) | Number of Windings | Pin diameter (mm) | Approx. Weight (g) |
| TL420-1-201
TL420-1-202 TL420-1-203 |
4
2 1 |
6
10 15 |
36
16 10 |
400
1000 1000 |
2
2 2 |
1.0
1.3 1.6 |
100
105 110 |
| TL420-2-201
TL420-2-202 TL420-2-203 TL420-2-204 TL420-2-205 TL420-2-206 |
20
7 5 3 1.8 1.5 |
1.5
2 4 6 10 14 |
250
120 60 30 15 10 |
250
300 400 500 300 350 |
2
2 2 2 2 2 |
0.5
0.6 0.8 1.0 1.3 1.5 |
125
125 130 130 135 140 |
| TL420-2-301 | 1.5 | 10 | 14 | 300 | 3 | 1.3 | 150 |
| TL420-2-401 | 1.5 | 6 | 22 | 200 | 4 | 1.0 | 140 |
| TL420-3-201
TL420-3-202 TL420-3-203 |
4
1.6 1 |
16
32 35 |
15
5.0 4.0 |
180
220 400 |
2
2 2 |
1.6
2.3 2.5 |
625
660 670 |
| TL420-3-301
TL420-3-302 |
2.5
1.5 |
16
25 |
12.5
8.5 |
220
220 |
3
3 |
1.6
2.0 |
650
680 |
| TL420-3-401 | 1.2 | 16 | 9.5 | 250 | 4 | 1.6 | 655 |
