Compact Ferrite Inductor (TL07 Series) [ |

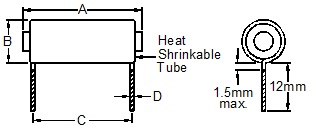

[][] | Features:
] ] |
|
| [ |
| Part Number | Inductance (uH, ±10%) | DCR (m ohm, max.) | Rated Current (A, max.) | Dimension (mm) | |||
| A (±2.0) | B (max.) | C (ref.) | D (±0.1) | ||||
| TL07-001
TL07-002 TL07-003 TL07-004 TL07-005 |
111
498 194 52 241 |
315
720 400 110 250 |
1
1 1 2 2 |
16.0
20.0 20.0 15.0 20.0 |
11.0
12.0 11.0 12.5 14.0 |
14.0
18.0 18.0 13.0 18.0 |
0.4
0.4 0.4 0.6 0.6 |
| TL07-006
TL07-007 TL07-008 TL07-009 TL07-010 |
92
67 28 54 256 |
140
90 45 60 160 |
2
3 4 4 4 |
20.0
20.0 16.0 20.0 25.0 |
11.5
12.0 13.0 13.0 16.0 |
18.0
18.0 13.0 18.0 23.0 |
0.6
0.7 0.8 0.8 0.8 |
| TL07-011
TL07-012 TL07-013 TL07-014 TL07-015 |
273
74 98 103 458 |
160
80 85 90 210 |
4
4 4 4 4 |
25.0
20.0 25.0 25.0 30.0 |
17.0
13.5 12.5 13.5 18.0 |
23.0
18.0 23.0 23.0 28.0 |
0.8
0.8 0.8 0.8 0.8 |
| TL07-016
TL07-017 TL07-018 TL07-019 TL07-020 |
172
34 169 64 41 |
110
35 100 50 45 |
4
5 5 5 5 |
30.0
20.0 25.0 25.0 20.0 |
13.5
14.0 18.5 14.0 15.5 |
28.0
18.0 23.0 23.0 18.0 |
0.8
1.0 1.0 1.0 1.0 |
| TL07-021
TL07-022 TL07-023 TL07-024 TL07-025 |
66
278 108 45 29 |
50
110 60 30 25 |
5
5 5 5 6 |
25.0
30.0 30.0 25.0 20.0 |
14.0
19.5 15.5 15.5 16.5 |
23.0
28.0 28.0 23.0 18.0 |
1.0
1.0 1.0 1.2 1.2 |
| TL07-026
TL07-027 TL07-028 TL07-029 TL07-030 |
45
74 34 21 35 |
30
40 25 20 25 |
6
6 6 8 8 |
25.0
30.0 25.0 20.0 25.0 |
16.5
16.5 18.5 18.5 18.5 |
23.0
28.0 23.0 18.0 23.0 |
1.2
1.2 1.4 1.4 1.4 |
| TL07-031
TL07-032 TL07-033 TL07-034 TL07-035 |
54
23 14 26 40 |
30
18 15 18 20 |
8
10 10 10 10 |
30.0
25.0 20.0 25.0 30.0 |
18.5
18.5 19.0 19.0 20.0 |
28.0
23.0 18.0 23.0 27.0 |
1.4
1.6 1.6 1.6 1.6 |
