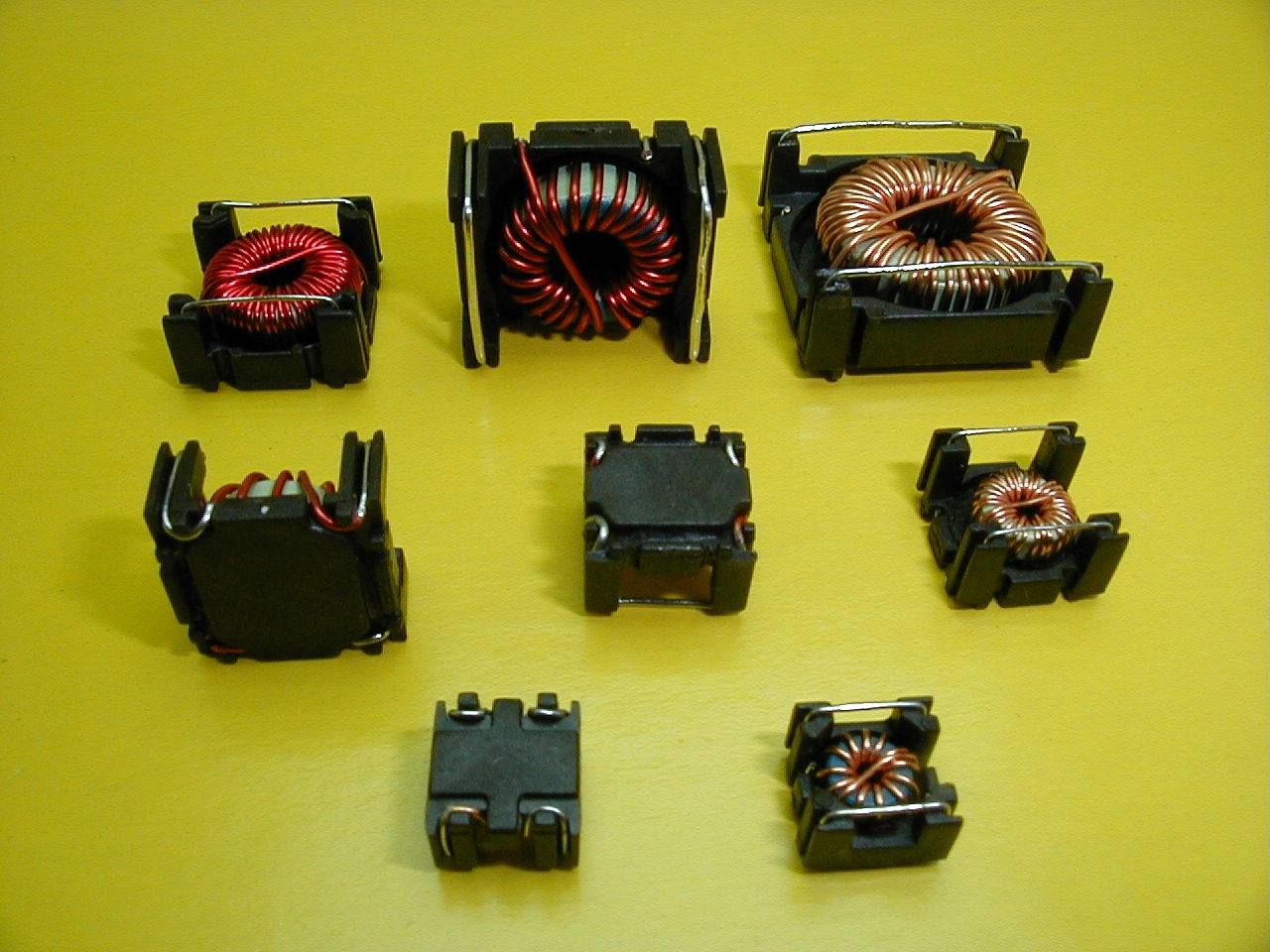

SMT Power Inductor (TL93 Series) [ |
[][] | Features:
]
|
|
| [ |
| Part Number | Operating Values | Control Values | |||
| Inductance (uH) Load DC | Current (Arms, DC) | Inductance (uH) w/o DC | DC Resistance (m ohm, max.) | DC Resistance (m ohm, nominal) | |
| TL93-1-001
TL93-1-002 TL93-1-003 TL93-1-004 TL93-1-005 |
12.6
9.2 3.2 1.9 1.1 |
1.0
1.3 1.8 2.5 3.2 |
16.8
12.7 3.94 2.52 1.42 |
122.0
86.0 38.0 22.5 15.2 |
94.0
66.0 29.0 17.3 11.7 |
| TL93-2-001
TL93-2-002 TL93-2-003 TL93-2-004 TL93-2-005 |
21.0
14.7 8.5 2.7 1.7 |
1.1
1.7 2.3 4.0 5.0 |
28.2
20.7 13.2 3.89 2.3 |
150.0
83.0 53.0 19.5 11.6 |
116.0
64.0 41.0 15.0 8.9 |
| TL93-3-001
TL93-3-002 TL93-3-003 TL93-3-004 TL93-3-005 |
60.0
27.5 10.0 5.8 3.5 |
1.2
2.1 3.3 4.5 6.5 |
87.0
45.8 16.3 9.38 5.85 |
218.0
105.0 43.0 24.0 15.0 |
168.0
81.0 33.0 18.5 11.5 |
| TL93-4-001
TL93-4-002 TL93-4-003 TL93-4-004 TL93-4-005 |
70.0
35.0 13.2 8.8 5.6 |
1.8
2.8 3.8 5.4 7.2 |
109.0
56.0 18.5 14.0 8.96 |
135.0
77.0 33.0 22.0 14.5 |
104.0
59.0 25.0 16.6 11.0 |
| TL93-6-001
TL93-6-002 TL93-6-003 TL93-6-004 TL93-6-005 |
93.0
46.0 19.7 10.2 7.3 |
2.1
3.2 4.5 6.8 10.0 |
152.0
82.5 31.7 19.0 13.2 |
190.0
96.0 44.0 24.5 16.7 |
146.0
74.0 34.0 18.8 12.8 |
| TL93-7-001
TL93-7-002 TL93-7-003 TL93-7-004 TL93-7-005 |
152.0
64.0 20.0 16.0 10.0 |
2.5
4.0 6.2 7.5 10.0 |
256.0
108.0 36.0 25.0 19.4 |
200.0
80.0 33.0 22.0 16.7 |
154.0
61.0 25.0 16.4 12.8 |
