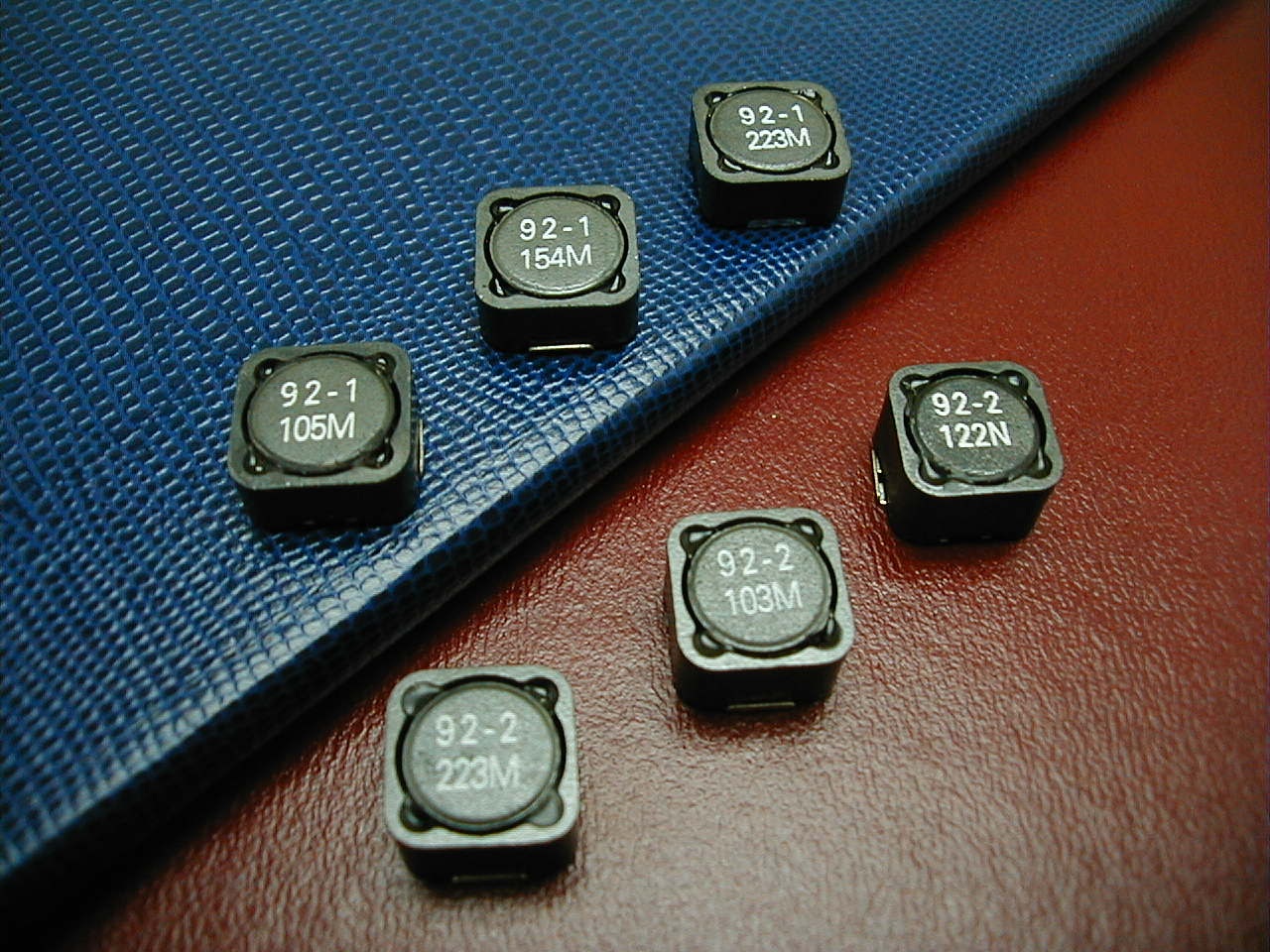

SMT Shielded Power Inductor (TL92 Series)

[

[][]

Features:

High current capacity
Low profile surface mount design
Low core loss for high frequency power application
Large terminal surface for good PCB bonding
Temperature range -30°C to +100°C
Custom-made inductors are available upon request

[

Part Number

Inductance (uH)

Test Frequency

DCR (ohm, max.)

Rated Current (A DC)

Part Number

Inductance (uH)

Test Frequency

DCR (ohm, max.)

Rated Current (A DC)

TL92-1-103M

TL92-1-123M

TL92-1-153M

TL92-1-183M

TL92-1-223M

10 ± 20%

12 ± 20%

15 ± 20%

18 ± 20%

22 ± 20%

1 kHz

0.025

0.027

0.030

0.034

0.036

4.0

3.5

3.3

3.0

2.8

TL92-2-122N

TL92-2-242N

TL92-2-352N

TL92-2-472N

TL92-2-612N

1.2 +40/-20%

2.4 +40/-20%

3.5 +40/-20%

4.7 +40/-20%

6.1 +40/-20%

100 kHz

0.007

0.012

0.014

0.016

0.018

9.8

8.0

7.5

6.8

6.6

TL92-1-273M

TL92-1-333M

TL92-1-393M

TL92-1-473M

TL92-1-563M

27 ± 20%

33 ± 20%

39 ± 20%

47 ± 20%

56 ± 20%

1 kHz

0.051

0.057

0.068

0.075

0.11

2.3

2.1

2.0

1.8

1.7

TL92-2-762N

TL92-2-103M

TL92-2-123M

TL92-2-153M

TL92-2-183M

7.6 +40/-20%

10 ± 20%

12 ± 20%

15 ± 20%

18 ± 20%

100 kHz

1 kHz

0.020

0.022

0.024

0.027

0.039

5.9

5.4

4.9

4.5

3.9

TL92-1-683M

TL92-1-823M

TL92-1-104M

TL92-1-124M

TL92-1-154M

68 ± 20%

82 ± 20%

100 ± 20%

120 ± 20%

150 ± 20%

1 kHz

0.12

0.14

0.16

0.17

0.23

1.5

1.4

1.3

1.1

1.0

TL92-2-223M

TL92-2-273M

TL92-2-333M

TL92-2-393M

TL92-2-473M

22 ± 20%

27 ± 20%

33 ± 20%

39 ± 20%

47 ± 20%

1 kHz

0.043

0.046

0.065

0.073

0.100

3.6

3.4

3.0

2.7

2.5

TL92-1-184M

TL92-1-224M

TL92-1-274M

TL92-1-334M

TL92-1-394M

180 ± 20%

220 ± 20%

270 ± 20%

330 ± 20%

390 ± 20%

1 kHz

0.29

0.40

0.46

0.51

0.69

0.90

0.80

0.75

0.68

0.65

TL92-1-474M

TL92-1-564M

TL92-1-684M

TL92-1-824M

TL92-1-105M

470 ± 20%

560 ± 20%

680 ± 20%

820 ± 20%

1000 ± 20%

1 kHz

0.77

0.86

1.20

1.34

1.53

0.58

0.54

0.48

0.43

0.40
