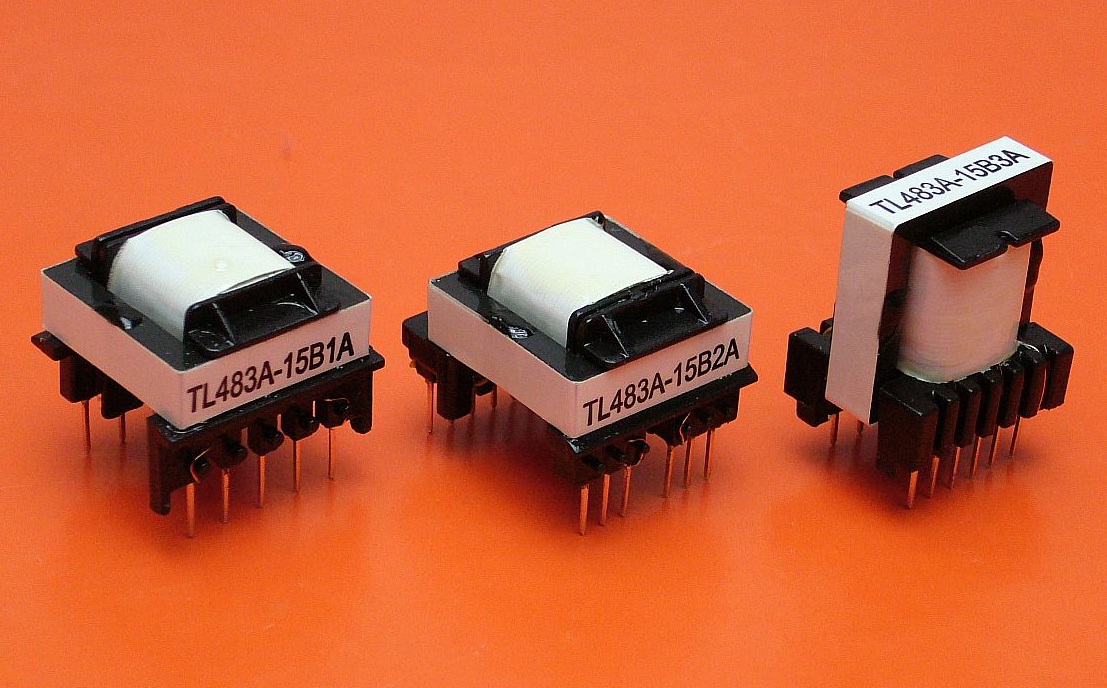

Flyback Transformer EF20 (TL483 Series) [ ] |
Features:
Safety Approval:
|
||
| [] |

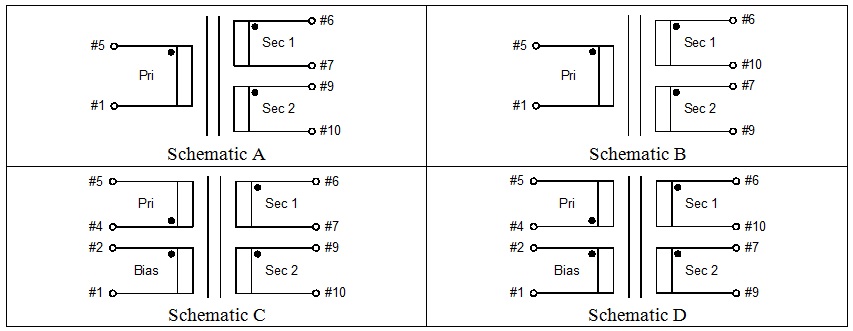

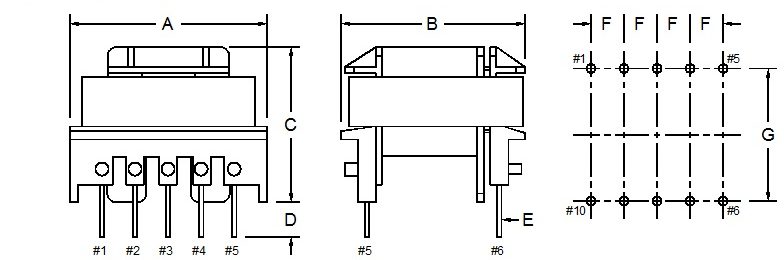

Bobbin Type 1 & Available Schematics:
| A | B | C | D | E | F | G | Weight (g) | |
| Dimension (mm) | 23.7 | 22.2 | 19.5 | 3.5 | SQ0.5 | 3.81 | 15.24 | 14.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.5 | approx. |

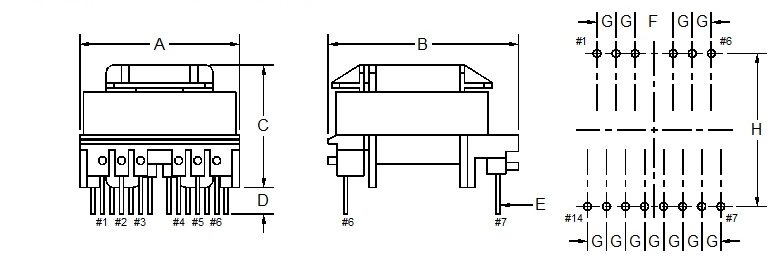

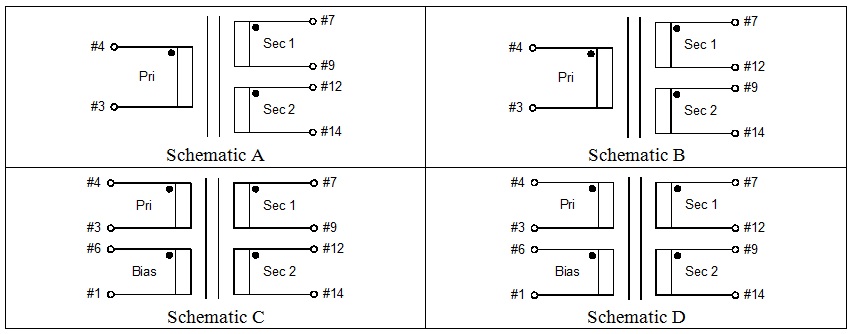

Bobbin Type 2 & Available Schematics:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 22.0 | 26.0 | 17.5 | 3.5 | SQ0.5 | 5.0 | 2.5 | 20.0 | 14.5 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.2 | ±0.5 | approx. |

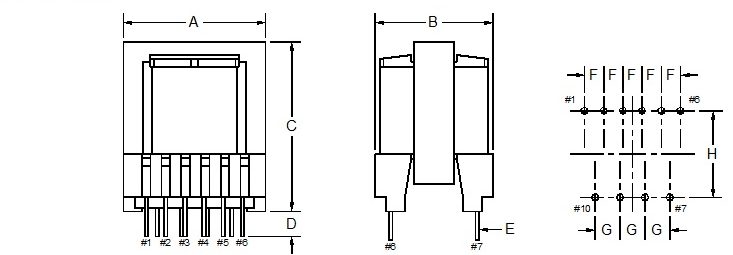

Bobbin Type 3:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 21.5 | 17.5 | 25.0 | 3.5 | SQ0.5 | 2.7 | 3.5 | 12.2 | 15.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.2 | ±0.5 | approx. |

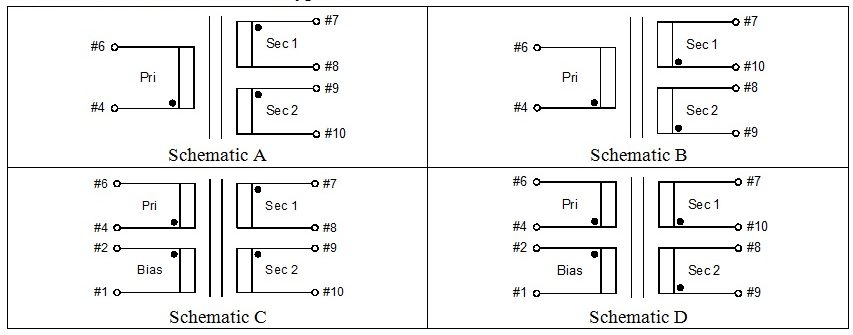

Available Schematics for Bobbin Type 3:
Available Items:
| Product Series | Power | Secondary Voltage | Bobbin Type & Schematic |
| TL483A
(working frequency=132kHz) |
12 (=12W)
14 (=14W) 15 (=15W) 18 (=18W) 20 (=20W) 22 (=22W) 24 (=24W) |
A (=3V)
B (=5V) C (=6V) D (=10V) E (=12V) F (=15V) G (=20V) H (=24V) |
1A; 1B; 1C; 1D
2A; 2B; 2C; 2D 3A; 3B; 3C; 3D |
Part Number Designation:
TL483v-wwxxyz where
- v = working frequency (A = 132kHz)
- ww = maximum output power
- x = secondary voltage
- y = available bobbin type
- z = available schematic
Example: TL483A-20CC3D = 132kHz / 20W / 6V + 6V / Bobbin Type 3 / 2 outputs + bias
Example of application with Integrated Circuits:
| Product Series | Power (W) | IC Manufacturer | IC P/N | Primary Voltage (V) | Working Frequency (kHz) |
| TL483A
TL483A TL483A TL483A TL483A TL483A TL483A |
12
14 15 18 20 22 24 |
Power Integrations
Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations |
TOP243P
TNY267/277 TOP243P TNY268/278 TOP243P TOP242/243 TOP243P |
85-265
85-265 85-265 185-265 185-265 185-265 185-265 |
132
132 132 132 132 132 132 |
