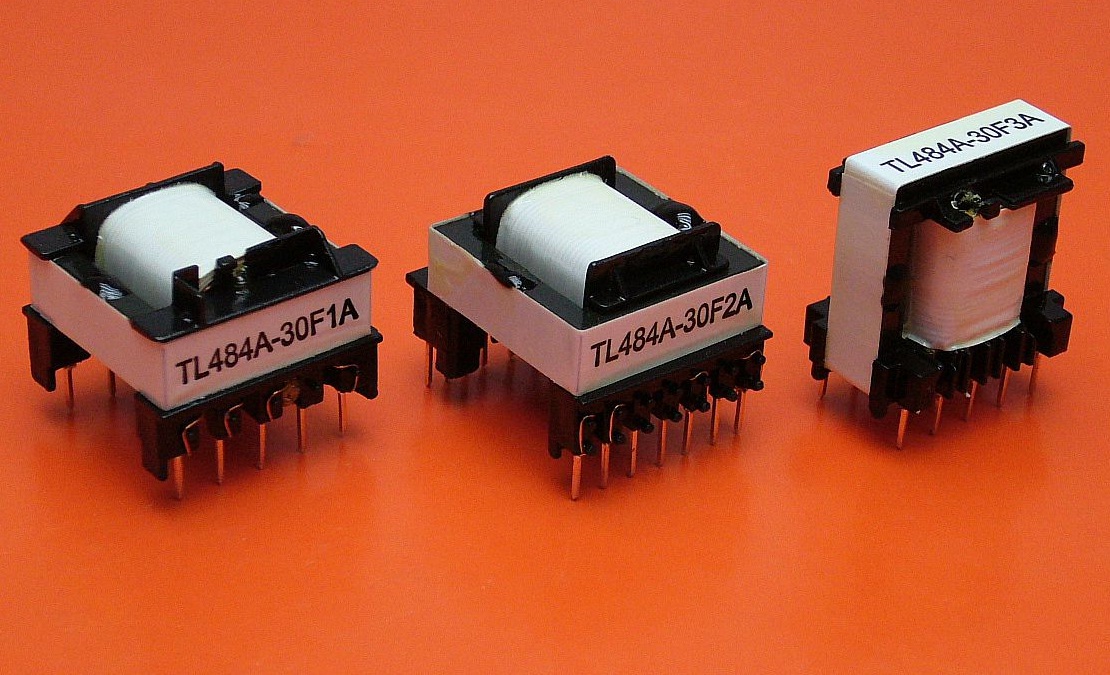

Flyback Transformer EF25 (TL484 Series) [ ] |
Features:
Safety Approval:
|
||
| [] |

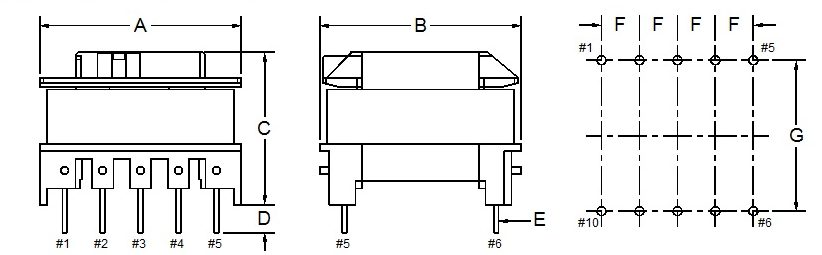

Bobbin Type 1 & Available Schematics:
| A | B | C | D | E | F | G | Weight (g) | |
| Dimension (mm) | 28.0 | 28.0 | 22.0 | 3.5 | SQ0.64 | 5.08 | 20.32 | 27.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.5 | approx. |

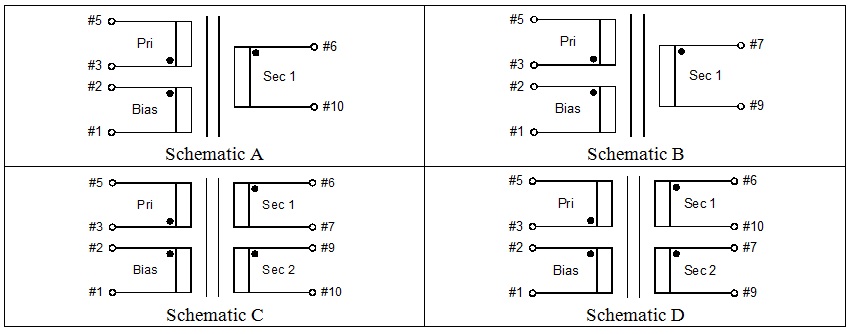

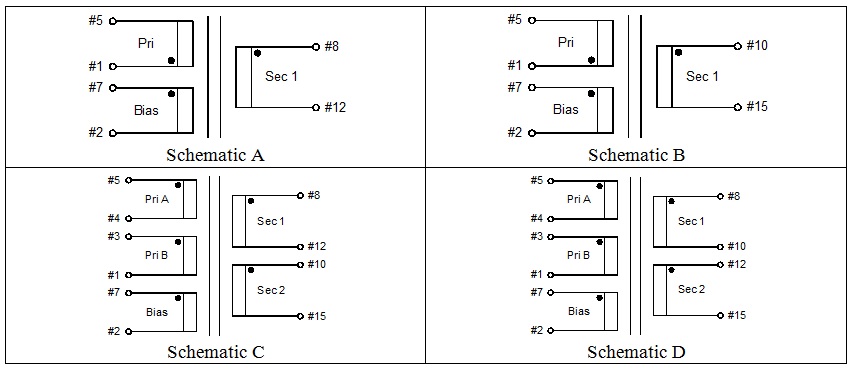

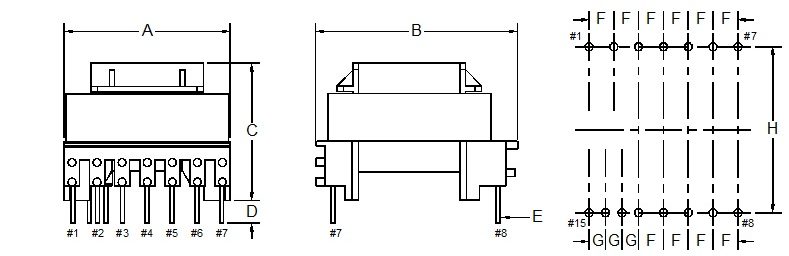

Bobbin Type 2 & Available Schematics:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 26.5 | 32.5 | 22.5 | 3.5 | SQ0.64 | 3.81 | 2.54 | 25.4 | 27.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.2 | ±0.5 | approx. |

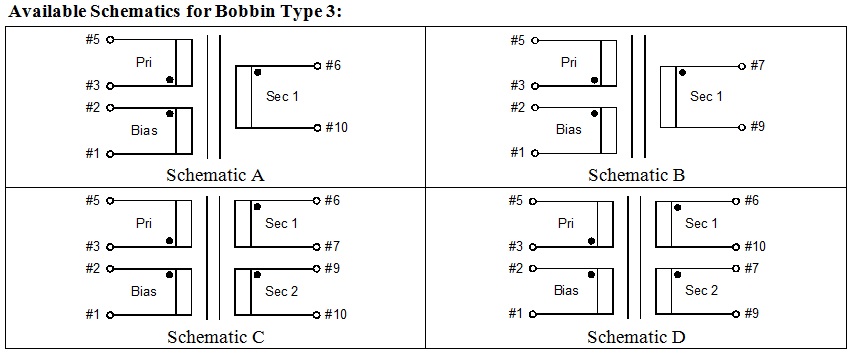

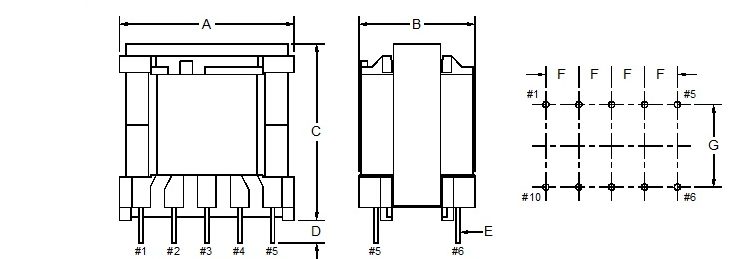

Bobbin Type 3:
| A | B | C | D | E | F | G | Weight (g) | |
| Dimension (mm) | 28.0 | 19.5 | 28.0 | 3.5 | SQ0.64 | 5.08 | 12.7 | 26.5 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.2 | approx. |
Available Items:
| Product Series | Power | Secondary Voltage | Bobbin Type & Schematic |
| TL484A
(working frequency=132kHz) |
25 (=25W)
28 (=28W) 30 (=30W) 34 (=34W) 45 (=45W) |
A (=3V)
B (=5V) C (=6V) D (=10V) E (=12V) F (=15V) G (=20V) H (=24V) |
1A; 1B; 1C; 1D
2A; 2B; 2C; 2D 3A; 3B; 3C; 3D |
Part Number Designation:
TL484v-wwxxyz where
- v = working frequency (A = 132kHz)
- ww = maximum output power
- x = secondary voltage
- y = available bobbin type
- z = available schematic
Example: TL484A-30EE3C = 132kHz / 30W / 12V + 12V / Bobbin Type 3 / 2 outputs + bias
Example of application with Integrated Circuits:
| Product Series | Power (W) | IC Manufacturer | IC P/N | Primary Voltage (V) | Working Frequency (kHz) |
| TL484A
TL484A TL484A TL484A TL484A |
25
28 30 34 45 |
Power Integrations
Power Integrations Power Integrations Power Integrations Power Integrations |
TOP244Y
TOP244 TOP244P TOP244 TOP245 |
85-265
85-265 185-265 185-265 185-265 |
132
132 132 132 132 |
