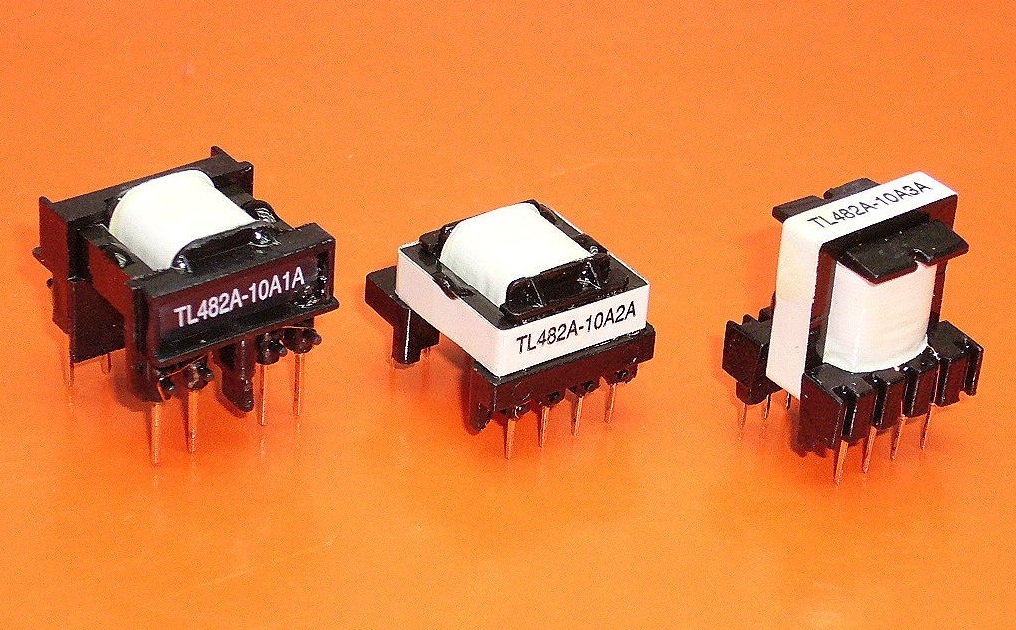

Flyback Transformer EF16 (TL482 Series) [ ] |
Features:
Safety Approval:
|
||
| [ |

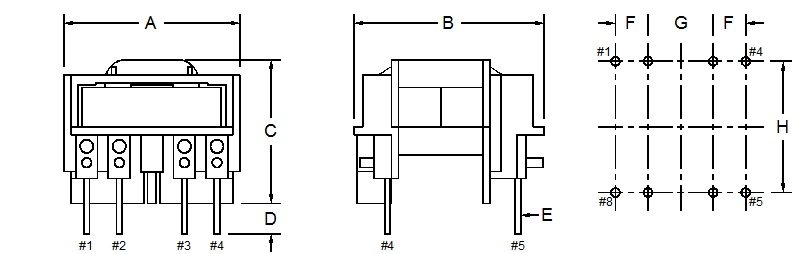

Bobbin Type 1:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 21.5 | 23.0 | 18.0 | 3.5 | SQ0.64 | 3.75 | 7.5 | 15.0 | 8.5 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.3 | ±0.5 | approx. |

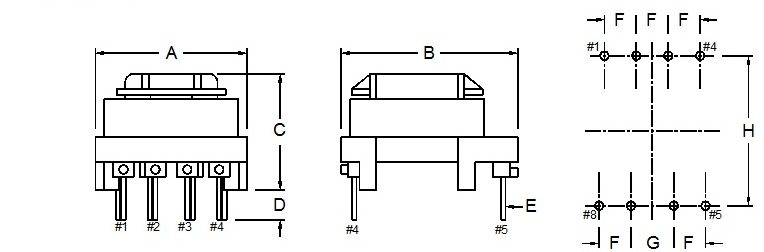

Bobbin Type 2:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 19.0 | 22.0 | 15.5 | 3.5 | SQ0.5 | 3.81 | 5.08 | 17.78 | 8.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.3 | ±0.5 | approx. |

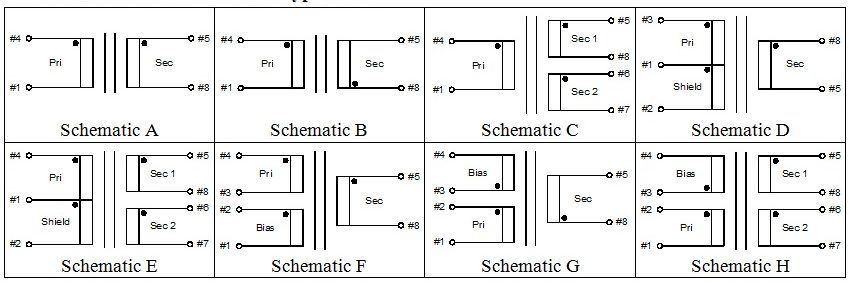

Available Schematics for Bobbin Type 1 & 2:

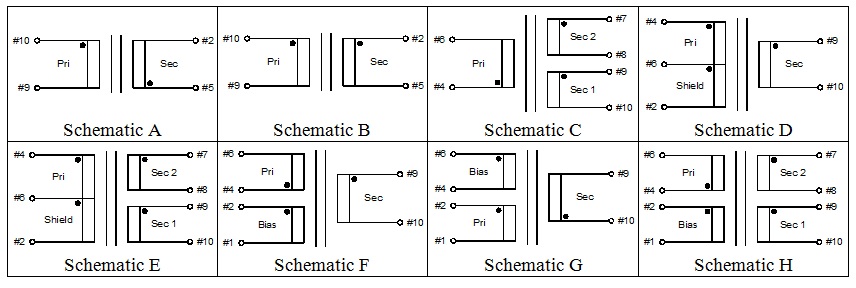

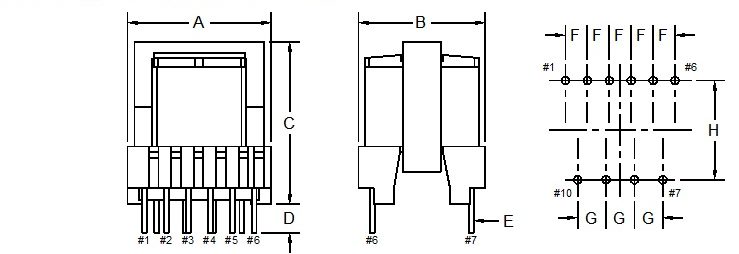

Bobbin Type 3 & Available Schematics:
| A | B | C | D | E | F | G | H | Weight (g) | |
| Dimension (mm) | 18.5 | 16.5 | 21.2 | 3.5 | SQ0.5 | 2.7 | 3.5 | 12.2 | 9.0 |
| Tolerance (mm) | max. | max. | max. | ±1.0 | ±0.1 | ±0.2 | ±0.2 | ±0.5 | approx. |
Available Items:
| Product Series | Power | Secondary Voltage | Bobbin Type & Schematic |
| TL482A
(working frequency=132kHz) |
03 (=3W)
05 (=5W) 06 (=6W) 07 (=7W) 08 (=8W) 09 (=9W) 10 (=10W) 12 (=12W) 16 (=16W) |
A (=3V)
B (=5V) C (=6V) D (=10V) E (=12V) F (=15V) G (=20V) H (=24V) |
1A; 1B; 1C; 1D;
1E; 1F; 1G; 1H;
2A; 2B; 2C; 2D; 2E; 2F; 2G; 2H;
3A; 3B; 3C; 3D; 3E; 3F; 3G; 3H |
| TL482B
(working frequency=44kHz) |
01 (=1.5W)
03 (=3W) 04 (=4W) |
Part Number Designation:
TL482v-wwxxyz where
- v = working frequency (A = 132kHz, B = 44Hz)
- ww = maximum output power
- x = secondary voltage
- y = available bobbin type
- z = available schematic
Example: TL482A-16EE3H = 132kHz / 16W / 12V + 12V / Bobbin Type 3 / 2 outputs + bias
Example of application with Integrated Circuits:
| Product Series | Power (W) | IC Manufacturer | IC P/N | Primary Voltage (V) | Working Frequency (kHz) |
| TL482A
TL482A TL482A TL482A TL482A TL482A TL482A TL482A TL482A TL482B TL482B TL482B |
3
5 6 7 8 9 10 12 16 1.5 3 4 |
Power Integrations
Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations Power Integrations |
TNY263/264
TNY264 TNY266 TNY276 TNY267 TNY267/277 TNY268 TNY266 TNY279 TNY253 TNY254 TNY255 |
85-265
85-265 85-265 85-265 85-265 85-265 85-265 185-265 85-265 85-265 85-265 85-26 |
132
132 132 132 132 132 132 132 132 44 44 44 |
