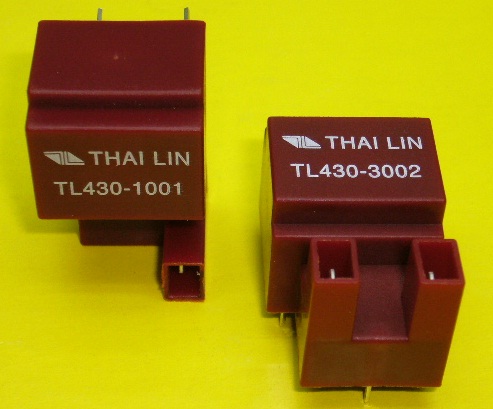

Ignition Transformer (TL430 series)

Ignition Transformer (TL430 Series)

[

 [][] Features:

  • To start up the ignition system of gas, oil or air
  • Available up to 23kVpp
  • Ambient Temperature 70°C
  • No-Load operation up to 30 seconds maximum

]

]
[
Part Number Primary Inductance (uH, ±15%) Secondary Inductance (mH, ±15%) Primary DC Resistance (m ohm, ±15%) Secondary DC Resistance (ohm, ±15%) Turn Ratio (Pri : Sec) Secondary Voltage @ load 30pF Spark Gap

TL430-1001

TL430-1002

 6

12

 240

340

 26

59

 520

822

 1 : 200

1 : 175

 22kV (typ.)

23kV (typ.)

 4 – 8

4 – 8
TL430-3001

TL430-3002

 6

12

 240

340

 26

59

 520

822

 1 : 200

1 : 175

 22kV (typ.)

23kV (typ.)

4 – 8

4 – 8
