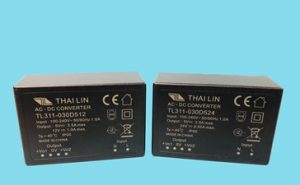

Switching Mode Power Supply For PCB Mounting (TL311-030 Series)



Switching Mode Power Supply For PCB Mounting (TL311-030 Series)



Features:

  • Rated Input: AC100V – 240V 50Hz / 60Hz
  • No Load Input Power : <300mW
  • CLASS II – Reinforced Insulation Designed
  • Insulation Class: B (130°C)
  • Flammability : UL94V0
  • Dielectric Strength: 3000VAC
  • Ambient temperature (ta) -25°C – +40°C
  • Storage temperature : -40°C – +85°C
  • Short circuit and overcurrent protected
  • CE marked
  • Construction conforms to EN61558-2-16, ECN60950-1, EN55024, EN55022, EN61000-3-2/3









Pin #1 AC(L) & #2 AC(N) and  DC Pin #3 DC Output 2 +V ; Pin #6 DC Output 1 +V; Pin #4,5 DC Output 0V

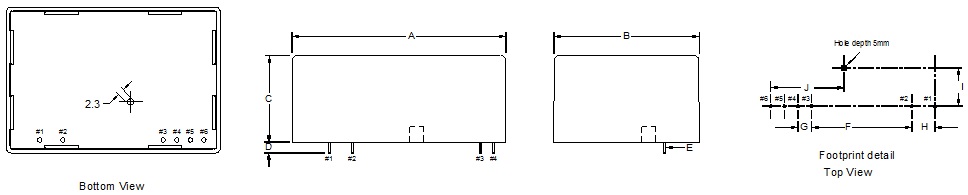

Product Series Dimension (mm)
A B C D E F G H I J K
TL311-030 78.8 53.6 31.9 4.0 1.0 37.0 5.0 8.5 14.0 27.0
Tolerance ±0.5 ±0.5 ±0.5 ±0.5 ±0.1 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5



Part Number Output Voltage (DC Volt)    Output Current    (DC mA) max. Output Power (W) max. Regulation (%) Ripple & Noise (mV) max. Efficiency (%) (115/230Vac)
TL311-030D512 5   (REGULATED) 3500 30 ±3 200 >84
12 1000 ±5

 16-17V(@5Vfull load,12Vno load)

200
TL311-030D524 5 (REGULATED) 3500 30 ±3 200 >85
24 550          ±5            25.5-27.5V (@5Vfull load,24Vno load) 200

Note : (1) Can be supplied assembly with terminal blocks.

            (2) For panel installation on mounting rails (DIN EN50022), add suffix (A) in part number if

                necessary.

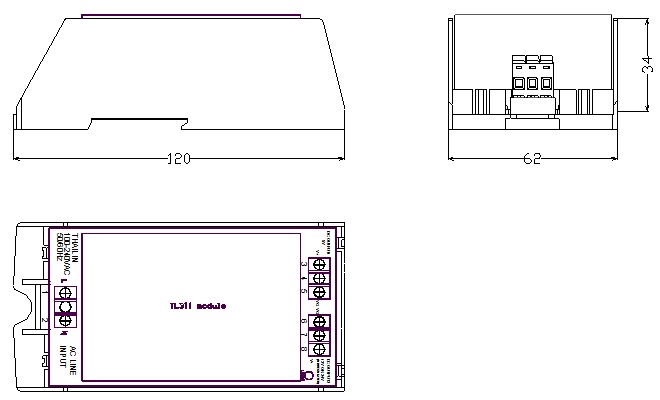

Physical Dimension for DAIL RAIL Module Option (suffix -A)

























Pin Connections

Pin # TL311 module
1 VAC IN (L)
2 VAC IN (N)
3 V1DC
4 V1DC GND
5 V1DC GND
6 V2DC GND
7 V2DC GND
8 V2DC OUT
