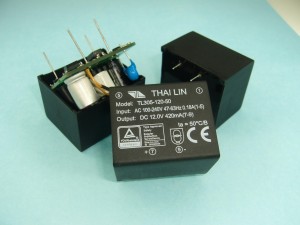

Built-in Switching Mode Power Supply (TL305 Series)

Built-in Switching Mode Power Supply (TL305 Series)



 Features:

  • Rated Input: AC100V – 240V   47Hz – 63Hz
  • No Load Input Power : <200mW
  • CLASS II – Reinforced Insulation Designed
  • Insulation Class: B (130°C)
  • Flammability : UL94V0
  • Dielectric Strength: 4000V
  • Ambient temperature (ta) -25°C – +70°C
  • Storage temperature : -40°C – +85°C
  • Potted under vacuum

Safety Approval:

  • TUV /CE: EN61558-1/EN61558-2-16 / EN60950-1          (R 50275524)
  • EMC (TUV): EN55024 / EN55022 / EN61000-3-2/3        (AE 50275730)

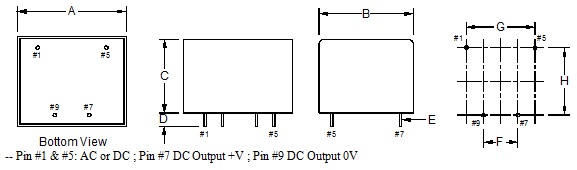

Product Series Dimension (mm) Weight (g)
A B C D E F G H
TL305 32.0 27.0 21.7 4.0 0.6 10.0 20.0 20.0 32.0
Tolerance ±0.5 ±0.5 ±0.5 ±0.5 ±0.1 ±0.5 ±0.5 ±0.5 approx.

 Part Number

Output Voltage (DC Volt)

Output Current (DC mA)

Output Power (W)

Efficiency (%)

Max. Ta. (°C)

TL305-033-25

TL305-050-25

TL305-090-25

TL305-120-25

TL305-150-25

TL305-240-25

3.3

5

9

12

15

24

750

500

270

210

170

110

2.5

2.5

2.5

2.5

2.5

2.5

65

68

72

72

72

72

+70

+70

+70

+70

+70

+70

TL305-033-50

TL305-050-50

TL305-090-50

TL305-120-50

TL305-150-50

TL305-240-50

3.3

5

9

12

15

24

1350

900

550

420

320

220

4.2

4.7

5.0

5.0

5.0

5.0

68

70

73

75

75

75

+50

+50

+50

+50

+50

+50
