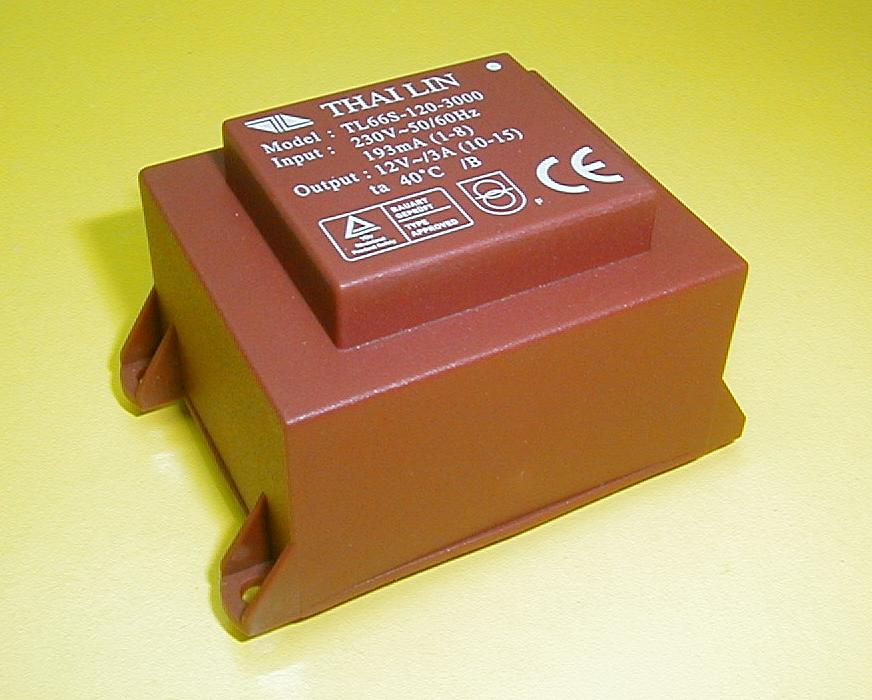

Encapsulated Transformer (EI66 / 23 Series) [][] [] |
Features:
Safety Approval:
|
||
| [][] |
| Product Series | Primary (V) | Single Secondary | Dual Secondary | ta (°C) | Agency Approval | ||||
| Part Number | Secondary Rating | Part Number | Secondary Rating | ||||||
| (V) | (mA) | (V) | (mA) | ||||||
|
30VA |
230 |
TL66S-060-5000 TL66S-072-4166 TL66S-090-3333 TL66S-100-3000 TL66S-120-2500 TL66S-150-2000 TL66S-180-1666 TL66S-240-1250 |
6 7.2 9 10 12 15 18 24 |
5000 4166 3333 3000 2500 2000 1666 1250 |
TL66D-060-2500 TL66D-072-2083 TL66D-090-1666 TL66D-100-1500 TL66D-120-1250 TL66D-150-1000 TL66D-180-0833 TL66D-240-0625 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
2500 2083 1666 1500 1250 1000 833 625 |
40 |
TUV CE |
|
115 |
TL66US-060-5000 TL66US-072-4166 TL66US-090-3333 TL66US-100-3000 TL66US-120-2500 TL66US-150-2000 TL66US-180-1666 TL66US-240-1250 |
6 7.2 9 10 12 15 18 24 |
5000 4166 3333 3000 2500 2000 1666 1250 |
TL66UD-060-2500 TL66UD-072-2083 TL66UD-090-1666 TL66UD-100-1500 TL66UD-120-1250 TL66UD-150-1000 TL66UD-180-0833 TL66UD-240-0625 |
2 x 6 2 x 7.2 2 x 9 2 x 10
2 x 12 2 x 15 2 x 18 2 x 24 |
2500 2083 1666 1500 1250 1000 833 625 |
40 |
UL506 Ul5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL66MS-060-5000 TL66MS-072-4166 TL66MS-090-3333 TL66MS-100-3000 TL66MS-120-2500 TL66MS-150-2000 TL66MS-180-1666 TL66MS-240-1250 |
6 7.2 9 10 12 15 18 24 |
5000 4166 3333 3000 2500 2000 1666 1250 |
TL66MD-060-2500 TL66MD-072-2083 TL66MD-090-1666 TL66MD-100-1500 TL66MD-120-1250 TL66MD-150-1000 TL66MD-180-0833 TL66MD-240-0625 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
2500 2083 1666 1500 1250 1000 833 625 |
40 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL66HS-060-5000 TL66HS-072-4166 TL66HS-090-3333 TL66HS-100-3000 TL66HS-120-2500 TL66HS-150-2000 TL66HS-180-1666 TL66HS-240-1250 |
6 7.2 9 10 12 15 18 24 |
5000 4166 3333 3000 2500 2000 1666 1250 |
TL66HD-060-2500 TL66HD-072-2083 TL66HD-090-1666 TL66HD-100-1500 TL66HD-120-1250 TL66HD-150-1000 TL66HD-180-0833 TL66HD-240-0625 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
2500 2083 1666 1500 1250 1000 833 625 |
40 |
— |
|
|
36VA
|
230 |
TL66S-060-6000 TL66S-072-5000 TL66S-090-4000 TL66S-100-3600 TL66S-120-3000 TL66S-150-2400 TL66S-180-2000 TL66S-240-1500 |
6 7.2 9 10 12 15 18 24 |
6000 5000 4000 3600 3000 2400 2000 1500 |
TL66D-060-3000 TL66D-072-2500 TL66D-090-2000 TL66D-100-1800 TL66D-120-1500 TL66D-150-1200 TL66D-180-1000 TL66D-240-0750 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
3000 2500 2000 1800 1500 1200 1000 750 |
40 |
TUV CE |
|
115 |
TL66US-060-6000 TL66US-072-5000 TL66US-090-4000 TL66US-100-3600 TL66US-120-3000 TL66US-150-2400 TL66US-180-2000 TL66US-240-1500 |
6 7.2 9 10 12 15 18 24 |
6000 5000 4000 3600 3000 2400 2000 1500 |
TL66UD-060-3000 TL66UD-072-2500 TL66UD-090-2000 TL66UD-100-1800 TL66UD-120-1500 TL66UD-150-1200 TL66UD-180-1000 TL66UD-240-0750 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
3000 2500 2000 1800 1500 1200 1000 750 |
40 |
UL506 Ul5085-1/-2 C-UL |
|
|
115 (Parallel) or 230 (Series) |
TL66MS-060-6000 TL66MS-072-5000 TL66MS-090-4000 TL66MS-100-3600 TL66MS-120-3000 TL66MS-150-2400 TL66MS-180-2000 TL66MS-240-1500 |
6 7.2 9 10 12 15 18 24 |
6000 5000 4000 3600 3000 2400 2000 1500 |
TL66MD-060-3000 TL66MD-072-2500 TL66MD-090-2000 TL66MD-100-1800 TL66MD-120-1500 TL66MD-150-1200 TL66MD-180-1000 TL66MD-240-0750 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
3000 2500 2000 1800 1500 1200 1000 750 |
40 |
UL5085-1/-2 C-UL TUV CE |
|
|
400 |
TL66HS-060-6000 TL66HS-072-5000 TL66HS-090-4000 TL66HS-100-3600 TL66HS-120-3000 TL66HS-150-2400 TL66HS-180-2000 TL66HS-240-1500 |
6 7.2 9 10 12 15 18 24 |
6000 5000 4000 3600 3000 2400 2000 1500 |
TL66HD-060-3000 TL66HD-072-2500 TL66HD-090-2000 TL66HD-100-1800 TL66HD-120-1500 TL66HD-150-1200 TL66HD-180-1000 TL66HD-240-0750 |
2 x 6 2 x 7.2 2 x 9 2 x 10 2 x 12 2 x 15 2 x 18 2 x 24 |
3000 2500 2000 1800 1500 1200 1000 750 |
40 |
— |
|
Note:
- TL66S & TL66D series are fail-safe transformers.
- TL66MS, TL66MD, TL66HS & TL66HD series are non-short-circuit proof transformers.
| Product Catalog | |
 Encapsulated-Transformer-Type-EI66x23-30-36VA |
[][]
