Power Supply For Panel Installation On Mounting Fails (TL315 Series)

Power Supply For Panel Installation On Mounting Rails (TL315 Series)

 [][] Features:

  • Single phase non-stabilized AC/DC power supply / safety transformer
  • Rated input:  230V~ 50/60Hz
  • Short circuit proof with integrated fuse protection and thermal cut-off
  • Dielectric strength 4000Vrms
  • Insulation class B(130°C)
  • Protection class IP20
  • Ambient Temperature(ta) -25°C ~ +40°C
  • Output ON/OFF with switch and LED indication
  • RoHS Complied

Safety Approval:

  • Agency approvals: TUV / CE: EN61558

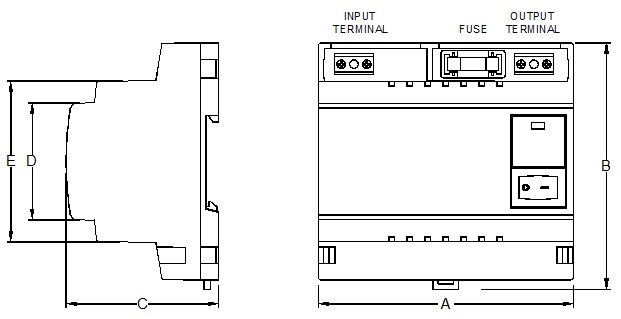

Physical Dimension :

Product Series Dimension (mm) Weight (g)
A B C D E
TL315-AYYY-ZZZ 84.0 94.0 63.0 45.0 61.5 700
TL315-BYYY-ZZZ 98.0 94.0 63.0 45.0 61.5 900
TL315-CYYY-ZZZ 109.0 104.0 63.0 45.0 70.0 1250
TL315-DYYY-ZZZ 165.0 94.0 63.0 45.0 61.5 1900
Tolerance ±1.0 ±1.0 ±1.0 ±0.5 ±0.5 approx.

Note: Stable plastic enclosure for panel installation on mounting rails (DIN EN50022).


Order Part Number Power Rating I/P Voltage (50/60Hz) (V) O/P Rated Voltage (V) O/P Rated Current (A) Sec Fuse Rating (A) Regulation (%) typ Ripple Factor (%) typ Efficiency (%) typ Dielectric Strength (kVrms) Electrical Schematic
TL315-A020-24* TL315-A025-24* TL315-B030-24* TL315-B036-24* TL315-C050-24* TL315-C063-24* TL315-D080-24* TL315-D100-24* 20VA
25VA  30VA
36VA  50VA
63VA  80VA
100VA		 230
230
230
230
230
230
230
230		 24Vrms
24Vrms
24Vrms
24Vrms
24Vrms
24Vrms
24Vrms
24Vrms		 0.83
1.04
1.25
1.50
2.08
2.63
3.33
4.17		 1
1.25
1.25
1.6
2.5
3.15
4
5		 13.5
15.5
9.5
10.5
9.0
10.5
9.5
11.5		 —
—
—
—
—
—
—
—		 81
81
85
85
87
87
87
86		 4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0		 I
I
I
I
I
I
II
II
TL315-A016-12*
TL315-A016-24*
TL315-B024-12*
TL315-B024-24*
TL315-C032-12*
TL315-C036-24*
TL315-D048-12*
TL315-D048-24*
TL315-D060-24*		 16W
16W
24W
24W
32W
36W
48W
48W
60W		 230
230
230
230
230
230
230
230
230		 12Vdc
24Vdc
12Vdc
24Vdc
12Vdc
24Vdc
12Vdc
24Vdc
24Vdc		 1.33
0.67
2.00
1.00
2.66
1.50
4.00
2.00
2.50 		1.6
0.8
2
1
3.15
1.6
4
2
2.5		 31
30
28
23.5
26
23
30
21
23.5		 5
3
5
3
5
3
5
3
3		 70
73
75
78
75
79
74
77
79		 4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0
4.0		 III
III
III
III
III
III
IV
IV
IV

Remark : “*” mean

Note:
1.    Fully cast-resin molded transformer
2.    For panel installation on mounting rails (DIN EN 50022)
3.    Input and output with screw-type terminals.
4.    Protection index: IP20
5.    Secondary side with ON/OFF switch and replaceable fuse
        (DIA5 x 20mm / IEC-60127-2 / slow blow)
6.    Unit is for indoor use and must have all terminations well-protected by plastic cover or in a panel/enclosure

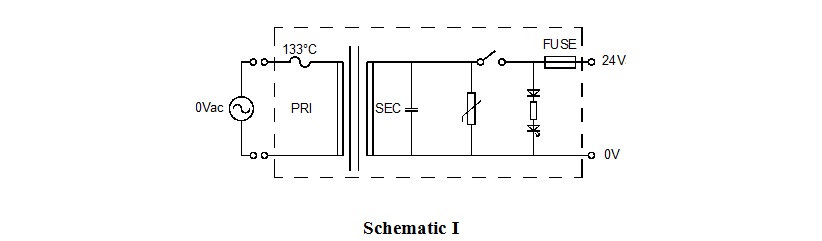

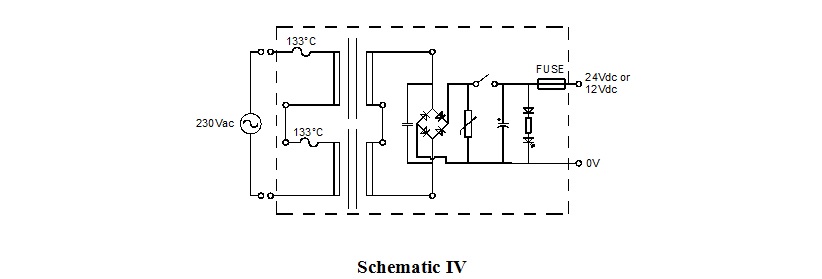

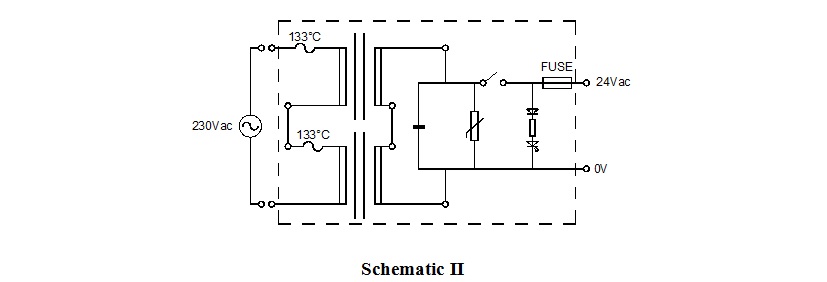

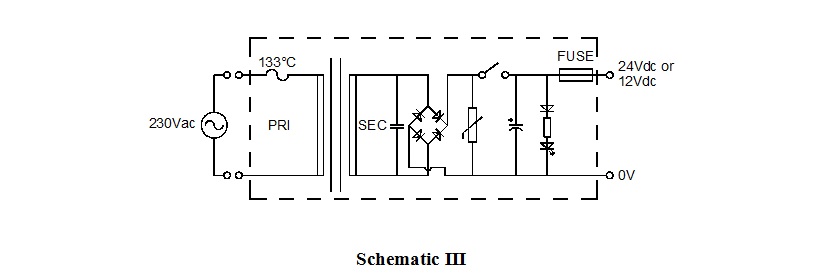

Circuit Diagrams :
