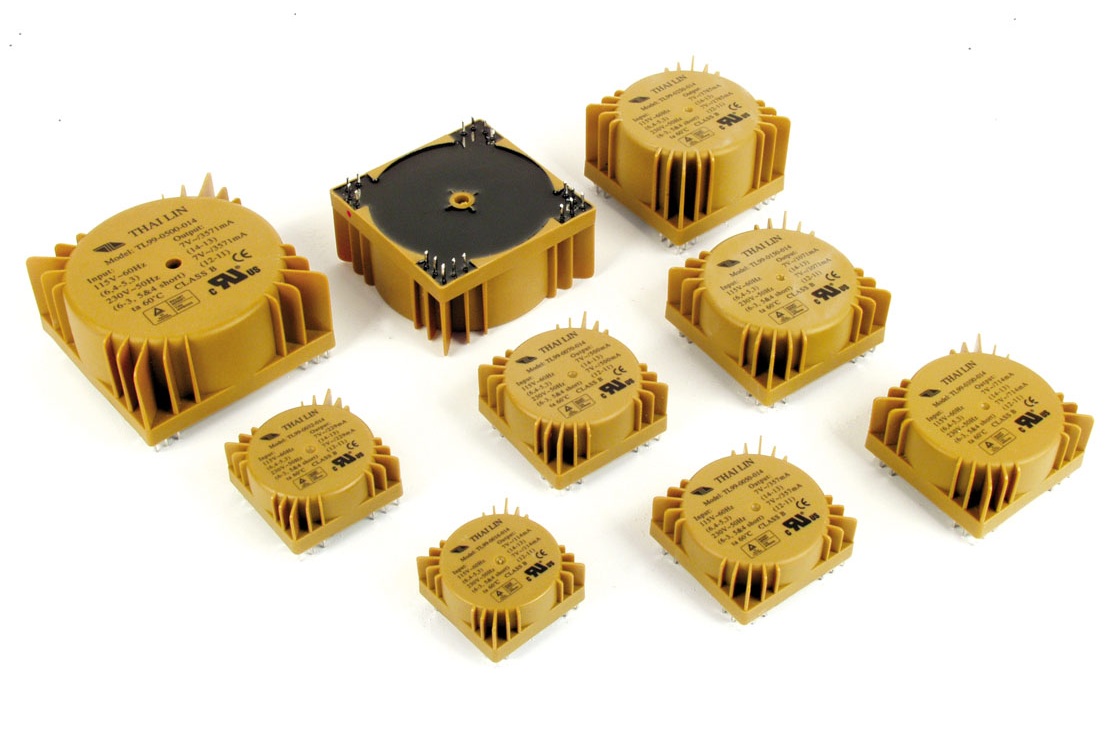

Encapsulated Toroidal Transformer (TL99 Series) [ |
Features:
Safety Approval
|
||
| [
[ [ |
|||
[]][]
| Product Series | Part Number | Input Voltage (V) | Secondary RMS Rating | ta(°C) |
|||
| Series | Parallel | ||||||
| Voltage | Current | Voltage | Current | ||||
|
1.6 VA |
TL99-0016-012 TL99-0016-014 TL99-0016-018 TL99-0016-024 TL99-0016-030 TL99-0016-036 TL99-0016-044 TL99-0016-048 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V |
@ 133mA @ 114mA @ 89mA @ 67mA @ 53mA @ 44mA @ 36mA @ 33mA |
6V 7V 9V 12V 15V 18V 22V 24V |
@ 266mA @ 228mA @ 178mA @ 134mA @ 106mA @ 88mA @ 72mA @ 66mA |
60 |
|
3.2 VA |
TL99-0032-012 TL99-0032-014 TL99-0032-018 TL99-0032-024 TL99-0032-030 TL99-0032-036 TL99-0032-044 TL99-0032-048 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V |
@ 266mA @ 229mA @ 178mA @ 133mA @ 107mA @ 89mA @ 73mA @ 66mA |
6V 7V 9V 12V 15V 18V 22V 24V |
@ 532mA @ 458mA @ 356mA @ 266mA @ 214mA @ 178mA @ 146mA @ 132mA |
60 |
|
5.0 VA |
TL99-0050-012 TL99-0050-014 TL99-0050-018 TL99-0050-024 TL99-0050-030 TL99-0050-036 TL99-0050-044 TL99-0050-048 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V |
@ 416mA @ 357mA @ 278mA @ 208mA @ 167mA @ 139mA @ 114mA @ 104mA |
6V 7V 9V 12V 15V 18V 22V 24V |
@ 832mA @ 714mA @ 556mA @ 416mA @ 334mA @ 278mA @ 228mA @ 208mA |
60 |
|
7.0 VA |
TL99-0050-012 TL99-0050-014 TL99-0050-018 TL99-0050-024 TL99-0050-030 TL99-0050-036 TL99-0050-044 TL99-0050-048 |
2 x 115 | 12V
14V 18V 24V 30V 36V 44V 48V |
@ 416mA
@ 357mA @ 278mA @ 208mA @ 167mA @ 139mA @ 114mA @ 104mA |
6V
7V 9V 12V 15V 18V 22V 24V |
@ 832mA
@ 714mA @ 556mA @ 416mA @ 334mA @ 278mA @ 228mA @ 208mA |
60 |
|
10 VA |
TL99-0100-012 TL99-0100-014 TL99-0100-018 TL99-0100-024 TL99-0100-030 TL99-0100-036 TL99-0100-044 TL99-0100-048 TL99-0100-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 833mA @ 714mA @ 556mA @ 417mA @ 333mA @ 278mA @ 227mA @ 208mA @ 43mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 1666mA @ 1428mA @ 1112mA @ 834mA @ 666mA @ 556mA @ 454mA @ 416mA @ 86mA |
60 |
|
15 VA |
TL99-0150-012 TL99-0150-014 TL99-0150-018 TL99-0150-024 TL99-0150-030 TL99-0150-036 TL99-0150-044 TL99-0150-048 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V |
@ 1250mA @ 1071mA @ 833mA @ 625mA @ 500mA @ 417mA @ 341mA @ 312mA |
6V 7V 9V 12V 15V 18V 22V 24V |
@ 2500mA @ 2142mA @ 1666mA @ 1250mA @ 1000mA @ 834mA @ 682mA @ 624mA |
60 |
|
25 VA |
TL99-0250-012 TL99-0250-014 TL99-0250-018 TL99-0250-024 TL99-0250-030 TL99-0250-036 TL99-0250-044 TL99-0250-048 TL99-0250-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 2083mA @ 1785mA @ 1377mA @ 1041mA @ 832mA @ 694mA @ 568mA @ 520mA @ 108mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 4166mA @ 3570mA @ 2754mA @ 2082mA @ 1664mA @ 1388mA @ 1136mA @ 1040mA @ 216mA |
40 |
|
35 VA |
TL99-0350-012 TL99-0350-014 TL99-0350-018 TL99-0350-024 TL99-0350-030 TL99-0350-036 TL99-0350-044 TL99-0350-048 TL99-0350-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 2916mA @ 2500mA @ 1944mA @ 1458mA @ 1167mA @ 972mA @ 795mA @ 729mA @ 152mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 5832mA @ 5000mA @ 3888mA @ 2916mA @ 2334mA @ 1944mA @ 1590mA @ 1458mA @ 304mA |
40 |
|
50 VA |
TL99-0500-012 TL99-0500-014 TL99-0500-018 TL99-0500-024 TL99-0500-030 TL99-0500-036 TL99-0500-044 TL99-0500-048 TL99-0500-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 4166mA @ 3571mA @ 2777mA @ 2083mA @ 1666mA @ 1388mA @ 1136mA @ 1041mA @ 217mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 8332mA @ 7142mA @ 5554mA @ 4166mA @ 3332mA @ 2776mA @ 2272mA @ 2082mA @ 434mA |
60 |
|
65 VA |
TL99-0650-012 TL99-0650-014 TL99-0650-018 TL99-0650-024 TL99-0650-030 TL99-0650-036 TL99-0650-044 TL99-0650-048 TL99-0650-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 5416mA @ 4642mA @ 3611mA @ 2708mA @ 2166mA @ 1805mA @ 1477mA @ 1354mA @ 282mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 10832mA @ 9284mA @ 7222mA @ 5416mA @ 4322mA @ 3610mA @ 2954mA @ 2708mA @ 564mA |
60 |
|
85 VA |
TL99-0850-012 TL99-0850-014 TL99-0850-018 TL99-0850-024 TL99-0850-030 TL99-0850-036 TL99-0850-044 TL99-0850-048 TL99-0850-230 |
2 x 115 |
12V 14V 18V 24V 30V 36V 44V 48V 230V |
@ 7083mA @ 6071mA @ 4722mA @ 3541mA @ 2833mA @ 2361mA @ 1931mA @ 1770mA @ 369mA |
6V 7V 9V 12V 15V 18V 22V 24V 115V |
@ 14166mA @ 12142mA @ 9444mA @ 7082mA @ 5666mA @ 4722mA @ 3862mA @ 3540mA @ 738mA |
60 |
[][]
