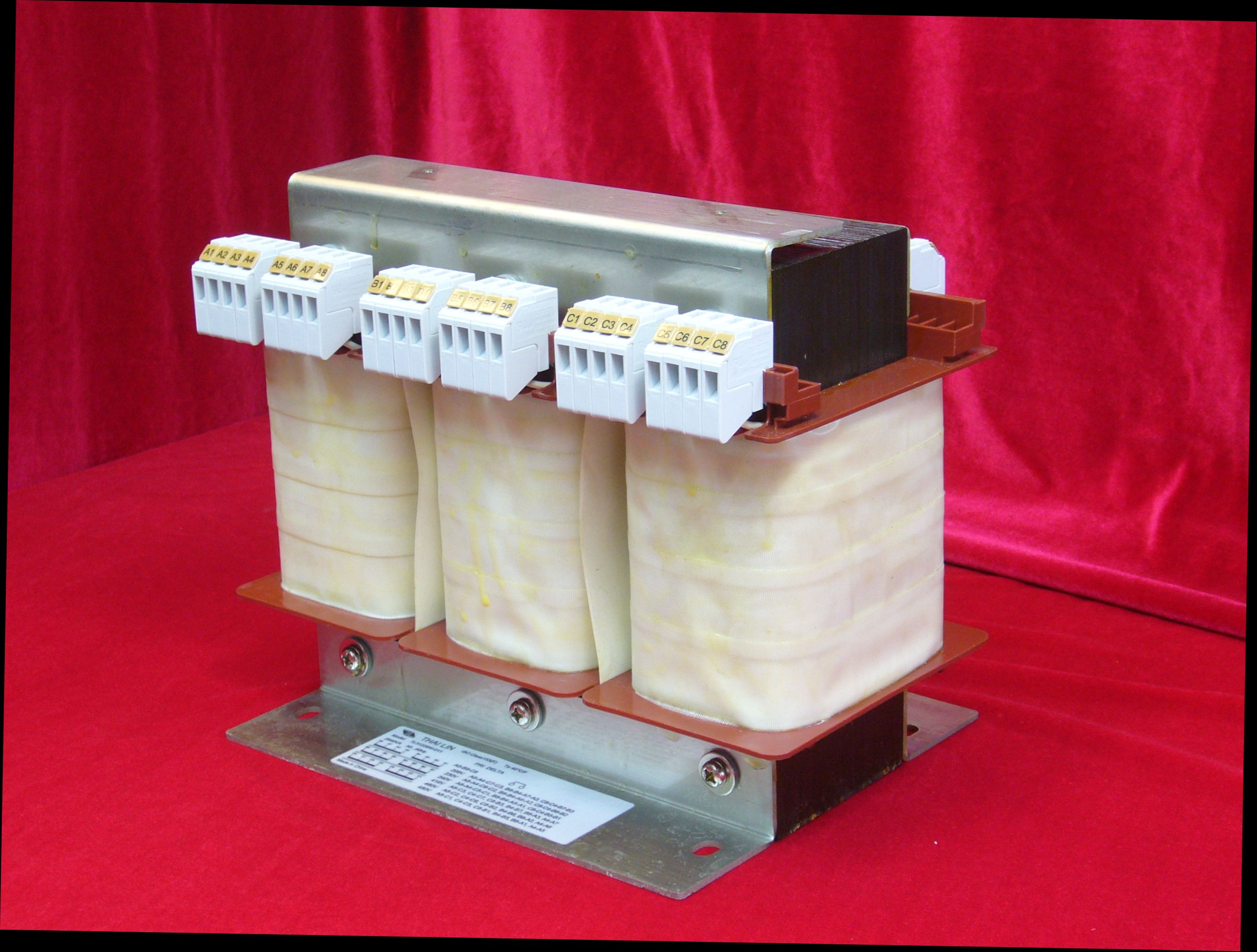

Three Phase Control Transformer (TL495 Series)

Three Phase Control Transformer (TL495 Series)



Features:

  • Power – 0.85kVA ~ 2.85kVA
  • Frequency – 50/60 Hz
  • Ambient temperature (ta) – 40°C ~ 50°C
  • Insulation class – class F (155°C)
  • Dielectric strength – 4000Vrms
  • Degree of protection – IP00

Safety Approval:

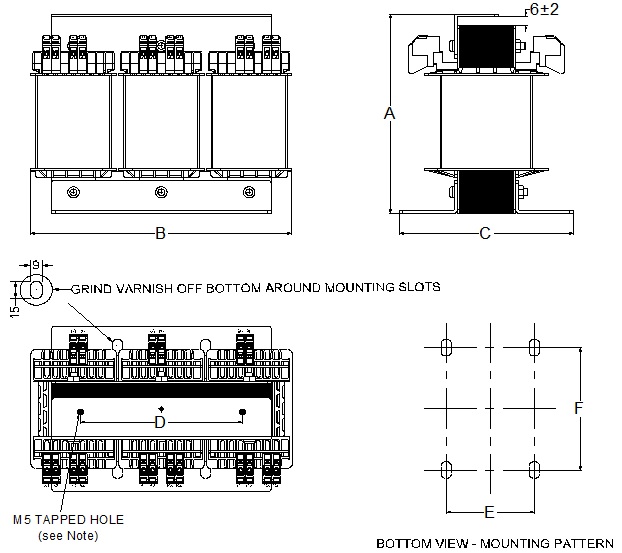

Product Series Rated Power (kVA) Dimension (mm) Weight (kg)
A B C D E F
TL495-085 0.85 183.0 226.0 150.0 141.0 76.2 111.2 14.0
TL495-110 1.10 183.0 226.0 150.0 141.0 76.2 111.2 14.0
TL495-125 1.25 183.0 226.0 165.0 141.0 76.2 126.2 17.5
TL495-150 1.50 183.0 226.0 165.0 141.0 76.2 126.2 17.5
TL495-200 2.00 216.0 273.5 174.5 141.0 200.0 105.0 25.0
TL495-225 2.25 216.0 273.5 174.5 141.0 200.0 105.0 25.0
TL495-260 2.60 216.0 273.5 189.5 141.0 200.0 120.0 29.0
TL495-285 2.85 216.0 273.5 189.5 141.0 200.0 120.0 29.0
Tolerance   typ. typ. typ. typ. typ. ±0.5 approx.

Note:  Able to install T-35 bar (Mounting Rails DIN EN50022) for varistor wiring with terminal block.

Part Number Designation:

TL495 – XXX R YY – ZZSS

Where      XXX  =    Output Power  (0.85kVA ~ 2.85kVA)

                    R     =     Input Style  (“S” = Single, “D” = Double, “M” = multiple)

                   YY   =    Input Voltage Range

                   ZZ    =    Output Voltage Range

                   SS   =    Add suffix “A” represent without input taps (for single / double style input only), or any

                               alphanumeric (1 digit or 2 digits, or blank for marketing purpose)

Example: TL495-085S01-02 = 0.85kVA / Single / Input 230V / Output △ 24V (Delta) or Y 42V (Wye)

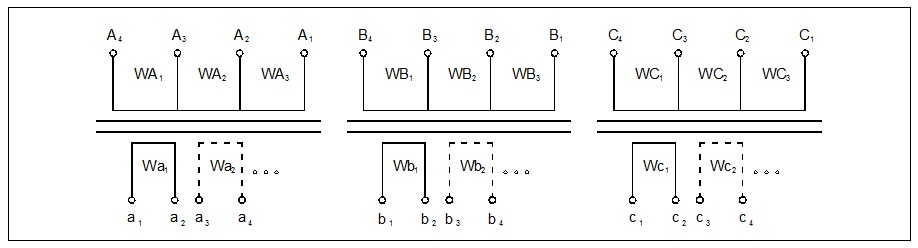

Available Schematic Of Single Style Input For Standard Program

  Note:  Nominal single style input voltage taps ± 5%.

Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA △ 230V △ 400V △ 500V △ 575V Feed Terminals Jumper Links
(S01) (S03) (S05) (S07)
TL495-XXXRYY-ZZSS (085) 0.85

△ 218

△ 230

△ 242

△ 380

△ 400

△ 420

△ 475

△ 500

△ 525

△ 550

△ 575

△ 600

A4, B4, C4

A4, B4, C4

A4, B4, C4

A4–C3; C4–B3; B4–A3

A4–C2; C4–B2; B4–A2

A4–C1; C4–B1; B4–A1

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85
Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA Y 400V Feed Terminals Jumper Links
(S02)
TL495-XXXRYY-ZZSS (085) 0.85

Y 420

Y 400

Y 380

A4, B4, C4

A4, B4, C4

A4, B4, C4

A1–B1–C1

A2–B2–C2

A3–B3–C3

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85

Note:  Y / △ disconnecting links are not included in the scope of supply.

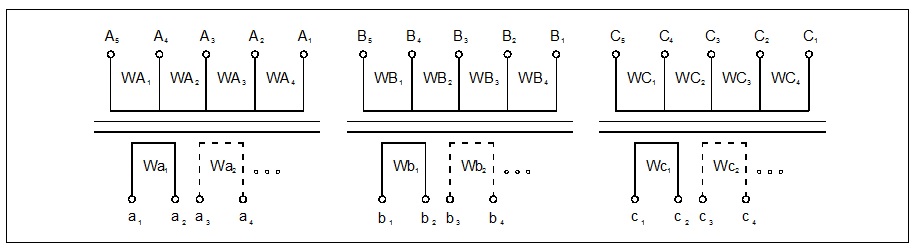

Available Schematic Of Double Style Input For Standard Program

Note:  Nominal double style input voltage taps ±15V.

Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA △ 230V / 173V △ 289V / 230V △ 330V / 289V Feed Terminals Jumper Links
(D01) (D03) (D05)
TL495-XXXRYY-ZZ (085) 0.85 △ 245

△ 230

△ 215

△ 188

△ 173

△ 158

△ 304

△ 289

△ 274

△ 245

△ 230

△ 215

△ 345

△ 330

△ 315

△ 304

△ 289

△ 274

A1, B1, C1

A1, B1, C1

A1, B1, C1

A2, B2, C2

A2, B2, C2

A2, B2, C2

A1–C5; C1–B5; B1–A5

A1–C4; C1–B4; B1–A4

A1–C3; C1–B3; B1–A3

A2–C5; C2–B5; B2–A5

A2–C4; C2–B4; B2–A4

A2–C3; C2–B3; B2–A3

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85
Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA Y 400V / 300V Y 500V / 400V Y 570V / 500V Feed Terminals Jumper Links
(D02) (D04) (D06)
TL495-XXXRYY-ZZ (085) 0.85 Y 425

Y 400

Y 372

Y 325

Y 300

Y 273

Y 525

Y 500

Y 475

Y 425

Y 400

Y 372

Y 600

Y 570

Y 545

Y 525

Y 500

Y 475

A1, B1, C1

A1, B1, C1

A1, B1, C1

A2, B2, C2

A2, B2, C2

A2, B2, C2

A5–B5–C5

A4–B4–C4

A3–B3–C3

A5–B5–C5

A4–B4–C4

A3–B3–C3

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85

Note: Y / △ disconnecting links are not included in the scope of supply.

Available Schematic Of Multiple Style Input For Standard Program

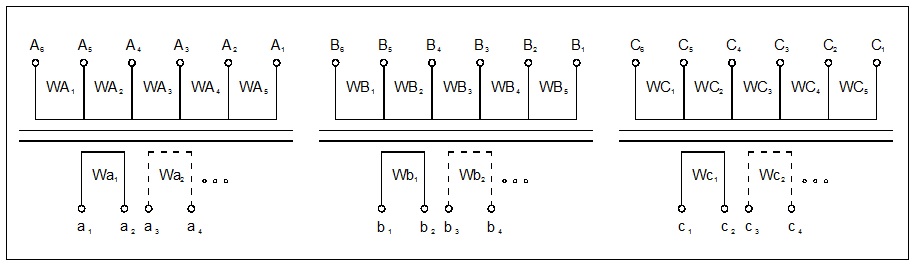

Version 1:

Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA (M01) (M05) Feed Terminals Jumper Links
TL495-XXXRYY-ZZSS (085) 0.85

△ 300

△ 289

△ 277

△ 266

△ 254

△ 240

△ 230

△ 220

△ 208

△ 346

△ 332

△ 318

△ 303

△ 290

△ 276

△ 267

△ 254

△ 240

A1, B1, C1

A1, B1, C1

A1, B1, C1

A2, B2, C2

A2, B2, C2

A2, B2, C2

A3, B3, C3

A3, B3, C3

A3, B3, C3

A6–B1; B6–C1; C6–A1

A5–B1; B5–C1; C5–A1

A4–B1; B4–C1; C4–A1

A6–B2; B6–C2; C6–A2

A5–B2; B5–C2; C5–A2

A4–B2; B4–C2; C4–A2

A6–B3; B6–C3; C6–A3

A5–B3; B5–C3; C5–A3

A4–B3; B4–C3; C4–A3

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85
Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA  (M03) (M07) Feed Terminals Jumper Links
TL495-XXXRYY-ZZ (085) 0.85

Y 520

Y 500

Y 480

Y 460

Y 440

Y 420

Y 400

Y 380

Y 360

Y 600

Y 575

Y 550

Y 525

Y 500

Y 480

Y 460

Y 440

Y 415

A1, B1, C1

A1, B1, C1

A1, B1, C1

A2, B2, C2

A2, B2, C2

A2, B2, C2

A3, B3, C3

A3, B3, C3

A3, B3, C3

A6–B6–C6

A5–B5–C5

A4–B4–C4

A6–B6–C6

A5–B5–C5

A4–B4–C4

A6–B6–C6

A5–B5–C5

A4–B4–C4

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85

Note: Y / △ disconnecting links are not included in the scope of supply.

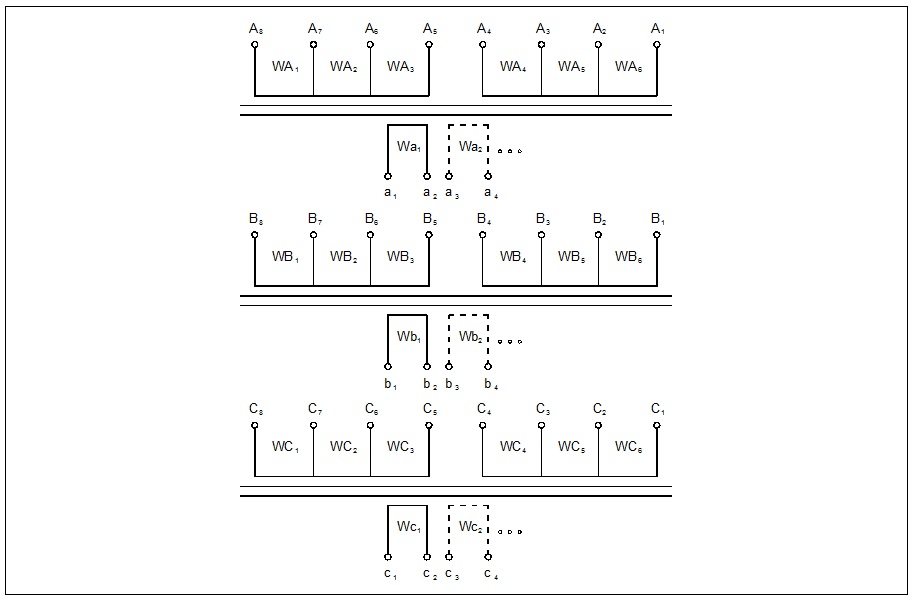

Version 2:

Part No. Rated Power Rated Input Voltage (RYY) Connections And Links
(XXX) kVA (M02) (M04) Feed Terminals Jumper Links
TL495-XXXRYY-ZZSS (085) 0.85

△ 208

△ 230

△ 240

△416

△460

△480

△ 240

△ 260

△ 300

△480

△520

△600

A8, B8, C8

A8, B8, C8

A8, B8, C8

A8, B8, C8

A8, B8, C8

A8, B8, C8

A8–A4–C7–C3; B8–B4-A7–A3; C8–C4–B7–B3

A8–A4–C6–C2; B8–B4–A6–A2; C8–C4–B6–B2

A8–A4–C5–C1; B8–B4–A5–A1; C8–C4–B5–B1

A8–C3, C4–C7, C8–B3, B4–B7, B8–A3, A4–A7

A8–C2, C4–C6, C8–B2, B4–B6, B8–A2, A4–A6

A8–C1, C4–C5, C8–B1, B4–B5, B8–A1, A4–A5

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85

Note: Y / △ disconnecting links are not included in the scope of supply.

Available Of Rated Output Voltage For Standard Program

Part No. Rated Power Rated Output Voltage
Connections And Links
(XXX) kVA (ZZ)
V Feed Terminals Jumper Links
TL495-XXXRYY-ZZSS (085) 0.85 (01)





(02)





(03)





(04)





(05)





(06)





(07)





(08)





(09)





(10)





(11)

Y 42

△ 24



Y 84

△ 48



Y 173

△ 100



Y 200

△ 115



Y 380

△ 220



Y 400

△ 230



Y 415

△ 240



Y 440

△ 254



Y 460

△ 265



Y 480

△ 277



Y 520

△ 300

a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1



a1,b1,c1

a1,b1,c1

a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1



a2-b2-c2

a2-b1; b2-c1; c2-a1

(110) 1.10
(125) 1.25
(150) 1.50
(200) 2.00
(225) 2.25
(260) 2.60
(285) 2.85

Note: (1) Other output voltage can be provided upon request.

         (2) Multiple outputs can be provided upon request.

         (3) Y / △ disconnecting links are not included in the scope of supply.

         (4) Input & output connection:

  • Screw-type terminals
  • Flat-type (6.3 x 0.8) connectors

         (5) Finger-safe terminal blocks according to EN50274 are labelled with numerical labels.

         (6) Output △ 24V is only available for 0.85kVA or less.

         (7) Output △ 48V is available for 1.5kVA or less.
