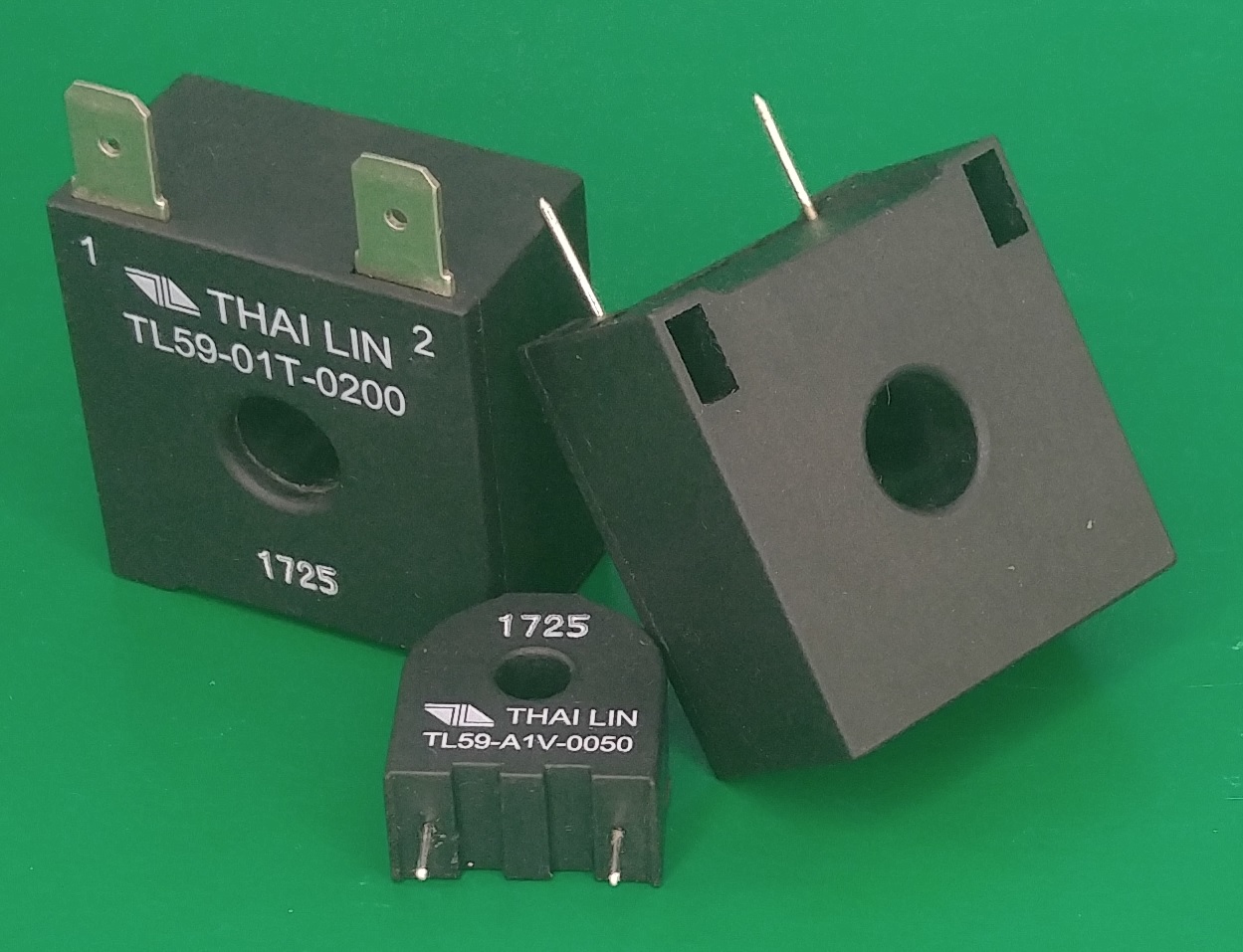

High Frequency Current Sensor (TL59 Series)

High Frequency Current Sensor (TL59 Series)



Features:

  • Rated voltage for up to 1000 Vrms
  • Operating frequency up to 500 kHz
  • Sense up to 200 Amps RMS
  • Dielectric Strength : 4000 Vrms
  • Insulation class: Class B (130°C)
  • Ambient temperature: -25°C to +70°C
  • With RoHS complied
  • Custom-made are available upon request

Product Series Dimension (mm) Weight (g)
A B C D E F G H I J

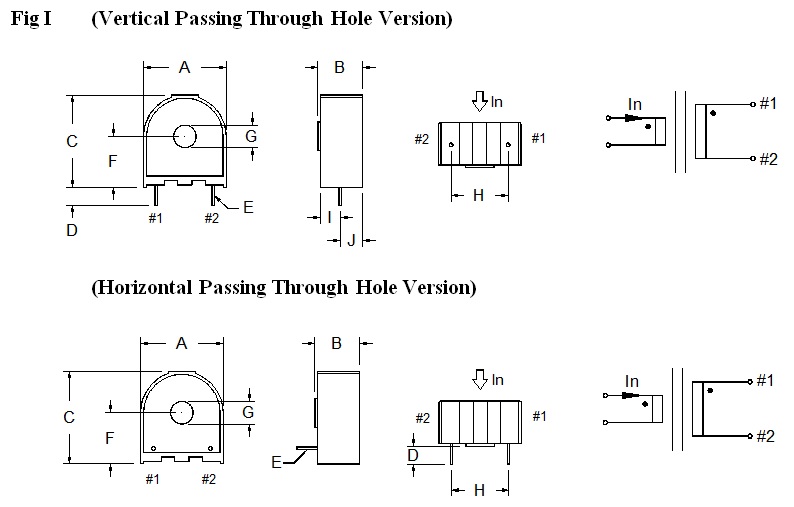

TL59-A1V-XXXX 18.5 10.0 20.5 4.0 DIA0.6 11.3 5.0 12.7 4.5 5.0 9.0
TL59-A1H-XXXX 18.5 10.0 20.5 4.0 DIA0.6 11.3 5.0 12.7 9.0
TL59-A2V-XXXX 22.5 13.0 25.0 4.0 DIA0.6 13.8 6.0 12.7 6.0 6.5 18.0
TL59-A2H-XXXX 22.5 13.0 25.0 4.0 DIA0.6 13.8 6.0 12.7 18.0
TL59-A3V-XXXX 22.5 14.5 25.4 4.0 DIA0.6 14.0 6.0 12.7 7.0 7.0 20.0
TL59-A3H-XXXX 22.5 14.5 25.4 4.0 DIA0.6 14.0 6.0 12.7 20.0
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±0.5 ±0.5 ±0.5 approx.

Product Series Dimension (mm) Weight (g)
A B C D E F G H I J K

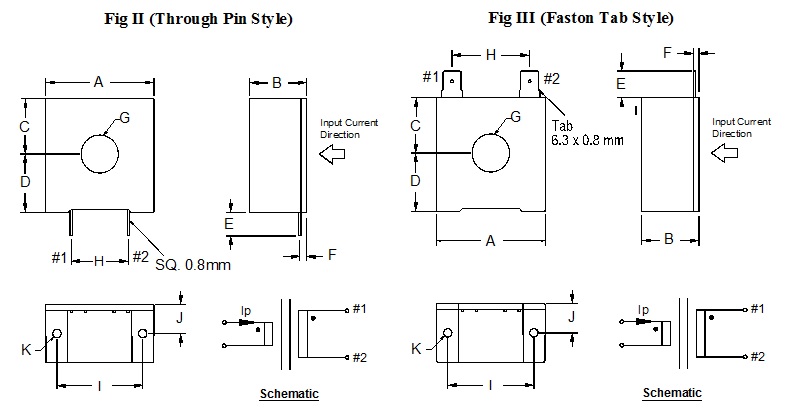

TL59-01P Fig II 32.5 18.5 17.0 16.5 8.0 2.4 DIA9.0 20.0 28.0 10.0 DIA2.9 39.0
TL59-01T Fig III 32.5 18.5 17.0 16.5 9.0 2.0 DIA9.0 21.0 28.0 10.0 DIA2.9 39.0
TL59-02P Fig II 38.0 20.0 19.0 20.0 8.0 2.4 DIA13.0 20.0 30.0 10.0 DIA2.9 55.0
TL59-02T Fig III 38.0 20.0 19.0 20.0 9.0 2.0 DIA13.0 27.0 30.0 10.0 DIA2.9 55.0
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±1.0 ±0.2 ±1.0 ±1.0 ±1.0 ±0.2 ±0.1 approx.

Product Series Dimension (mm) Weight (g)
A B C D E F G H I J

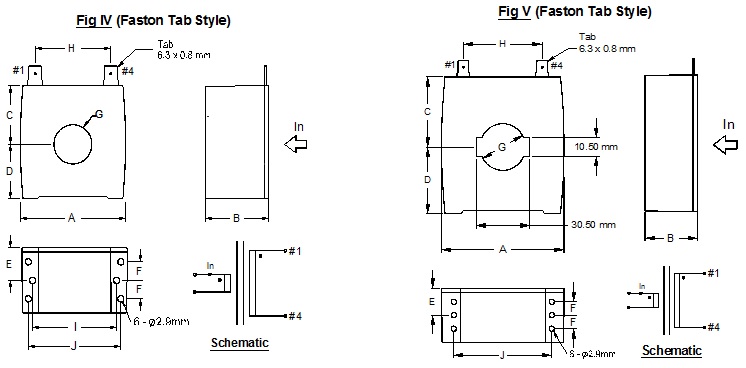

TL59-03T Fig IV 50.0 30.0 27.0 25.0 15.0 8.5 DIA18.0 12.0 40.0 44.0 181.0
TL59-04T Fig V 70.0 30.0 39.0 37.0 15.0 7.5 DIA26.0 15.0 56.0 333.0
Tolerance ±1.0 ±1.0 ±1.0 ±1.0 ±0.5 ±0.2 ±1.0 ±1.0 ±1.0 ±0.2 approx.



Part Number Rated Primary Current Ip(A) Pri : Sec Turns Ratio n Secondary Inductance (@1kHz/1V)   Ls(mH) Secondary DC Resistance (@25°C)  W Minimum Secondary Transfer Area (@BMAX. 25°C)  Vt (µVs) Working Frequency   (kHz) Maximum Rated Voltage  (V) Burden   Resistance   (W) Dielectric   Strength  Vrms(V)
TL59-A1X-0050

TL59-A1X-0100

TL59-A1X-0200

TL59-A1X-0250

TL59-A1X-0500

TL59-A1X-0750

TL59-A1X-1000

25

25

25

25

25

25

25

1 : 50

1 : 100

1 : 200

1 : 250

1 : 500

1 : 750

1 : 1000

4.36

21.96

85.78

121.0

468.1

1057

1842

0.15

0.51

2.10

3.22

13.37

28.79

47.65

331

663

1327

1659

3318

4978

6637

5 ~ 500

5 ~ 250

5 ~ 100

5 ~ 80

5 ~ 60

1 ~ 25

1 ~ 25

1000

1000

1000

1000

1000

1000

1000

0.5

1.0

5.0

10.0

30.0

50.0

100.0

4000

4000

4000

4000

4000

4000

4000

TL59-A2X-0050

TL59-A2X-0100

TL59-A2X-0200

TL59-A2X-0250

TL59-A2X-0500

TL59-A2X-0750

TL59-A2X-1000

35

35

35

35

35

35

35

1 : 50

1 : 100

1 : 200

1 : 250

1 : 500

1 : 750

1 : 1000

8.33

32.2

130.9

170.3

664

1325

2513

0.12

0.44

1.78

2.55

10.83

24.18

45.9

351

703

1407

1759

3519

5278

7038

5 ~ 500

5 ~ 250

5 ~ 80

5 ~ 80

5 ~ 60

1 ~ 25

1 ~ 20

1000

1000

1000

1000

1000

1000

1000

0.2

1.0

3.0

5.0

20.0

50.0

100.0

4000

4000

4000

4000

4000

4000

4000

TL59-A3X-0050

TL59-A3X-0100

TL59-A3X-0200

TL59-A3X-0250

TL59-A3X-0500

TL59-A3X-0750

TL59-A3X-1000

50

50

50

50

50

50

50

1 : 50

1 : 100

1 : 200

1 : 250

1 : 500

1 : 750

1 : 1000

10.53

38.31

128.8

173.2

605

1752

3070

0.14

0.41

1.55

2.63

10.46

22.18

38.58

443

887

1775

2219

4439

6658

8878

5 ~ 500

5 ~ 250

5 ~ 80

5 ~ 80

5 ~ 60

1 ~ 25

1 ~ 20

1000

1000

1000

1000

1000

1000

1000

0.2

1.0

3.0

5.0

20.0

50.0

100.0

4000

4000

4000

4000

4000

4000

4000

TL59-01X-0050

TL59-01X-0100

TL59-01X-0200

TL59-01X-0500

TL59-01X-1000

70

70

70

70

70

1 : 50

1 : 100

1 : 200

1 : 500

1 : 1000

10

40

130

937

3581

0.07

0.3

0.97

5.81

25.28

887.5

1775

3550

8875

17750

5 ~ 500

5 ~ 200

5 ~ 50

5 ~ 20

5 ~ 10

1000

1000

1000

1000

1000

0.2

1.0

3.0

25.0

50.0

4000

4000

4000

4000

4000

TL59-02X-0100

TL59-02X-0200

TL59-02X-0500

TL59-02X-1000

100

100

100

100

1 : 100

1 : 200

1 : 500

1 : 1000

31

121

1040

3540

0.27

1.17

7.8

27.99

2964

5928

14820

29640

5 ~ 60

1 ~ 25

1 ~ 20

1 ~ 10

1000

1000

1000

1000

0.4

3.0

20.0

80.0

4000

4000

4000

4000

TL59-03T-0100

TL59-03T-0200

TL59-03T-0500

TL59-03T-1000

TL59-03T-1500

TL59-03T-2000

300

300

300

300

300

300

1 : 100

1 : 200

1 : 500

1 : 1000

1 : 1500

1 : 2000

105

377

1950

8330

27700

116100

0.28

1.07

6.62

29.2

61.3

108

5925

11850

29625

59250

88875

118500

5 ~ 50

5 ~ 25

5 ~ 10

5 ~ 10

1 ~ 10

1 ~ 10

1000

1000

1000

1000

1000

1000

0.5

2

10

50

100

200

4000

4000

4000

4000

4000

4000

TL59-04T-0100

TL59-04T-0200

TL59-04T-0500

TL59-04T-1000

TL59-04T-1500

TL59-04T-2000

400

400

400

400

400

400

1 : 100

1 : 200

1 : 500

1 : 1000

1 : 1500

1 : 2000

74

284

1810

7220

24010

68000

0.2

0.75

3.7

12.2

28.5

45.8

6083

12166

30415

60830

91245

121660

5 ~ 50

5 ~ 25

5 ~ 10

5 ~ 10

1 ~ 10

1 ~ 10

1000

1000

1000

1000

1000

1000

0.3

2

5

20

50

100

4000

4000

4000

4000

4000

4000

Note: Items with “X” indicate that    V-Vertical style;  H-Horizontal style; P-Through pin style; T-Faston tab style
