Switching Mode Power Supply For PCB Mounting (TL311-020 Series)

Switching Mode Power Supply For PCB Mounting (TL311-020 Series)

Features:

  • Rated Input: AC100V – 240V 50Hz / 60Hz
  • No Load Input Power : <300mW
  • CLASS II – Reinforced Insulation Designed
  • Insulation Class: B (130°C)
  • Flammability : UL94V0
  • Dielectric Strength: 3000VAC
  • Ambient temperature (ta) -25°C – +40°C
  • Storage temperature : -40°C – +85°C
  • Potted under vacuum
  • Short circuit protected
  • CE marked
  • Construction conforms to EN61558-2-16, ECN60950-1, EN55024, EN55022, EN61000-3-2/3













Pin #1 AC(L) & #2 AC(N) and  DC Pin #3 DC Output +V ; Pin #4 DC Output 0V

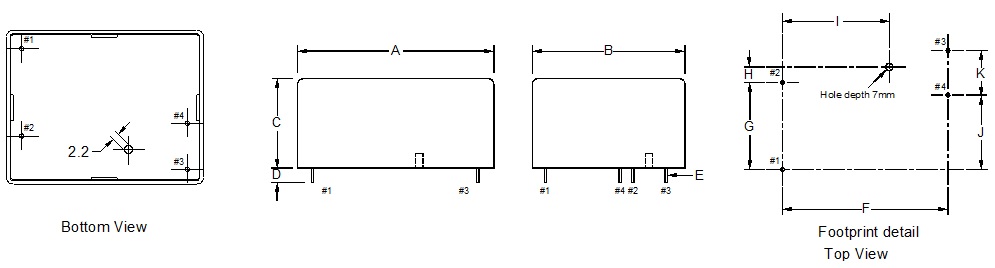

Product Series Dimension (mm) Weight (g)
A B C D E F G H I J K
TL311-020 54.4 42.5 25.3 4.0 1.0 45.7 24.1 4.3 29.5 20.6 12.7 120
Tolerance (mm) ±0.5 ±0.5 ±0.5 ±0.5 ±0.1 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 ±0.5 approx.



Part Number     Output Voltage     (DC Volt)    Output Current    (DC mA) max. Output Power (W) max. Regulation (%) Ripple & Noise (mV) Efficiency (%)
TL311-020S05

TL311-020S09

TL311-020S12

TL311-020S15

TL311-020S18

TL311-020S24

5

9

12

15

18

24

4000

2200

1667

1333

1111

833

20

20

20

20

20

20

3

3

3

3

3

3

100

100

100

100

100

100

≥83

≥83

≥83

≥83

83

≥83

Note: under no-load & full load condition, the output voltage tolerance is ±5%

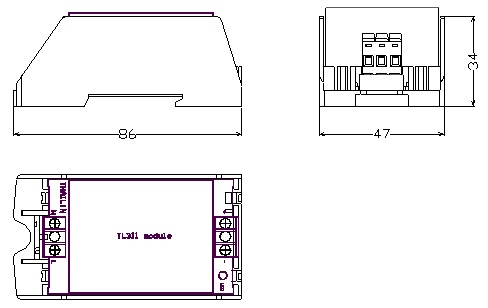

Physical Dimension for DIN RAIL Module Option (suffix -DM)























Pin Connections

Pin # TL311 module
1 VAC IN (N)
2 VAC IN (L)
3 +VDC OUT
4 -VDC OUT
